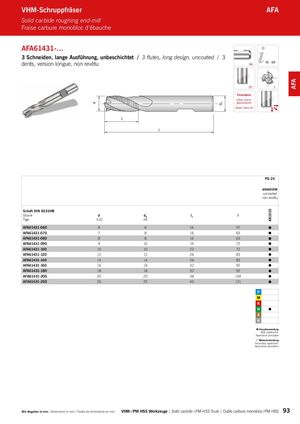

Каталог ARNO монолитный осевой инструмент - страница 93

d dA AK1010 AFA l VHM-Schruppfräser AFA Solid carbide roughing end-mill Fraise carbure monobloc d‘ébauche AFA61431-… 3 Schneiden, lange Ausführung, unbeschichtet / 3 flutes, long design, uncoated / 3 dents, version longue, non revêtu HB 98 – 106 30° 3 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 unbeschichtet uncoated non-revêtu Schaft DIN 6535HB Shank d dA l1 l Tige h10 h6 AFA61431-060 6 6 16 57  AFA61431-070 7 8 16 63  AFA61431-080 8 8 16 63  AFA61431-090 9 10 19 72  AFA61431-100 10 10 22 72  AFA61431-120 12 12 26 83  AFA61431-140 14 14 26 83  AFA61431-160 16 16 32 92  AFA61431-180 18 18 32 92  AFA61431-200 20 20 38 104  AFA61431-250 25 25 45 121    Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 93
