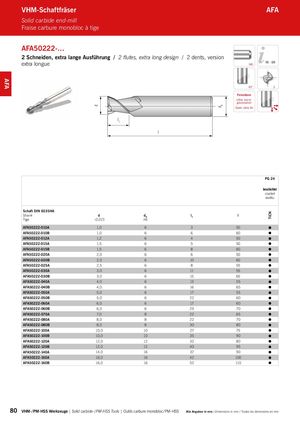

Каталог ARNO монолитный осевой инструмент - страница 80

AFA d dA TiCN l VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA50222-… 2 Schneiden, extra lange Ausführung / 2 flutes, extra long design / 2 dents, version extra longue HA 98 – 106 45° 2 Feinstkorn Ultra micro granulation Grain ultra fin l1 PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,015 h6 AFA50222-010A 1,0 6 3 50  AFA50222-010B 1,0 6 6 60  AFA50222-012A 1,2 6 4 50  AFA50222-015A 1,5 6 5 50  AFA50222-015B 1,5 6 8 60  AFA50222-020A 2,0 6 6 50  AFA50222-020B 2,0 6 10 60  AFA50222-025A 2,5 6 8 55  AFA50222-030A 3,0 6 11 55  AFA50222-030B 3,0 6 15 65  AFA50222-040A 4,0 6 13 55  AFA50222-040B 4,0 6 16 65  AFA50222-050A 5,0 6 17 55  AFA50222-050B 5,0 6 22 60  AFA50222-060A 6,0 6 17 60  AFA50222-060B 6,0 6 25 70  AFA50222-070A 7,0 8 22 65  AFA50222-080A 8,0 8 22 70  AFA50222-080B 8,0 8 30 80  AFA50222-100A 10,0 10 27 75  AFA50222-100B 10,0 10 35 90  AFA50222-120A 12,0 12 32 80  AFA50222-120B 12,0 12 40 95  AFA50222-140A 14,0 16 37 90  AFA50222-160A 16,0 16 42 100  AFA50222-160B 16,0 16 52 110  80 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
