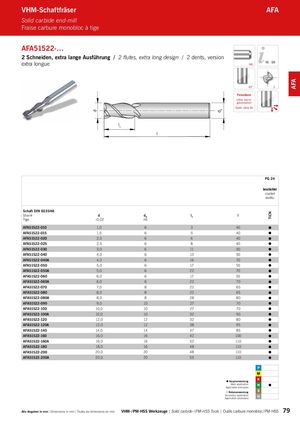

Каталог ARNO монолитный осевой инструмент - страница 79

d dA TiCN AFA VHM-Schaftfräser AFA Solid carbide end-mill Fraise carbure monobloc à tige AFA51522-… 2 Schneiden, extra lange Ausführung / 2 flutes, extra long design / 2 dents, version extra longue HA 98 – 106 45° 2 Feinstkorn Ultra micro granulation Grain ultra fin l1 l PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AFA51522-010 1,0 6 3 40  AFA51522-015 1,5 6 5 40  AFA51522-020 2,0 6 6 40  AFA51522-025 2,5 6 8 40  AFA51522-030 3,0 6 11 50  AFA51522-040 4,0 6 13 50  AFA51522-040A 4,0 6 16 70  AFA51522-050 5,0 6 17 55  AFA51522-050A 5,0 6 22 70  AFA51522-060 6,0 6 17 55  AFA51522-060A 6,0 6 22 70  AFA51522-070 7,0 8 22 65  AFA51522-080 8,0 8 22 65  AFA51522-080A 8,0 8 28 80  AFA51522-090 9,0 10 27 70  AFA51522-100 10,0 10 27 70  AFA51522-100A 10,0 10 32 90  AFA51522-120 12,0 12 32 80  AFA51522-120A 12,0 12 38 95  AFA51522-140 14,0 14 37 85  AFA51522-160 16,0 16 42 100  AFA51522-160A 16,0 16 52 110  AFA51522-180 18,0 16 48 110  AFA51522-200 20,0 20 48 110  AFA51522-200A 20,0 20 55 110   Hauptanwendung Main application  Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 79
