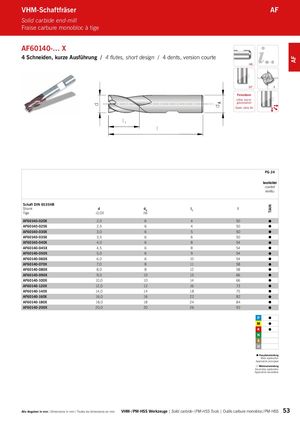

TiAlN AF VHM-Schaftfräser AF Solid carbide end-mill Fraise carbure monobloc à tige AF60140-… X 4 Schneiden, kurze Ausführung / 4 flutes, short design / 4 dents, version courte HB 63 – 72 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HB Shank d dA l1 l Tige -0,03 h6 AF60140-020X 2,0 6 4 50  AF60140-025X 2,5 6 4 50  AF60140-030X 3,0 6 5 50  AF60140-035X 3,5 6 6 50  AF60140-040X 4,0 6 8 54  AF60140-045X 4,5 6 8 54  AF60140-050X 5,0 6 9 54  AF60140-060X 6,0 6 10 54  AF60140-070X 7,0 8 11 58  AF60140-080X 8,0 8 12 58  AF60140-090X 9,0 10 13 66  AF60140-100X 10,0 10 14 66  AF60140-120X 12,0 12 16 73  AF60140-140X 14,0 14 18 75  AF60140-160X 16,0 16 22 82  AF60140-180X 18,0 18 24 84  AF60140-200X 20,0 20 26 92      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS 53
