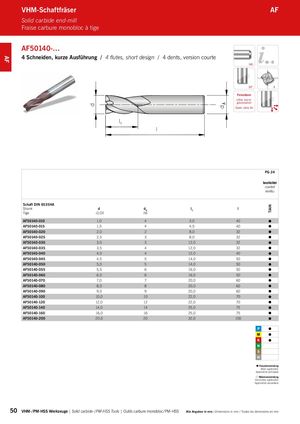

AF TiAlN VHM-Schaftfräser AF Solid carbide end-mill Fraise carbure monobloc à tige AF50140-… 4 Schneiden, kurze Ausführung / 4 flutes, short design / 4 dents, version courte HA 63 – 72 30° 4 Feinstkorn Ultra micro granulation Grain ultra fin PG 24 beschichtet coated revêtu Schaft DIN 6535HA Shank d dA l1 l Tige -0,03 h6 AF50140-010 1,0 4 3,0 40  AF50140-015 1,5 4 4,5 40  AF50140-020 2,0 2 8,0 32  AF50140-025 2,5 3 8,0 32  AF50140-030 3,0 3 12,0 32  AF50140-035 3,5 4 12,0 32  AF50140-040 4,0 4 12,0 40  AF50140-045 4,5 5 14,0 50  AF50140-050 5,0 5 14,0 50  AF50140-055 5,5 6 16,0 50  AF50140-060 6,0 6 16,0 50  AF50140-070 7,0 7 20,0 60  AF50140-080 8,0 8 20,0 60  AF50140-090 9,0 9 20,0 60  AF50140-100 10,0 10 22,0 70  AF50140-120 12,0 12 22,0 70  AF50140-140 14,0 14 25,0 75  AF50140-160 16,0 16 25,0 75  AF50140-200 20,0 20 32,0 100      Hauptanwendung Main application Application principale  Nebenanwendung Secondary application Application secondaire 50 VHM- / PM-HSS Werkzeuge | Solid carbide- / PM-HSS Tools | Outils carbure monobloc / PM-HSS Alle Angaben in mm / Dimensions in mm / Toutes les dimensions en mm
