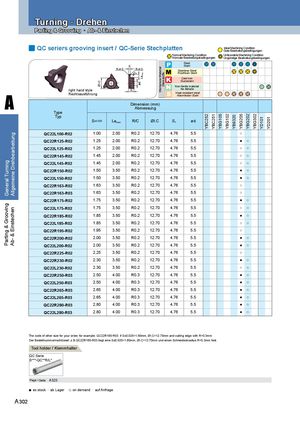

Каталог ZCC-CT токарная обработка - страница 303
Навигация
Каталог ZCC-CT сверла со сменными пластинами
Каталог ZCC-CT расточные системы
Общий каталог ZCC-CT 2019
Каталог ZCC-CT фрезы монолитные
Каталог ZCC-CT фрезы со сменными пластинами
| QC seriers groo right han Rechtsau | ving ins d style ØI.C sführung | ert / Q | S S1 Lamax 2 o C-Serie | Workpiece Material Werkstoffe Stech | Sta Non-f Ro G N Heat War Normal platten Normal | Steel inless Steel Cast iron errite material Stahl stfreier Stahl usseisen e Metalle -resistant steel mfester Stahl Machining Cond e Bearbeitungsb | ition edingungen | Ideal Machining Unfavorable Mac Gute Bearbeitun Ungünstige Bear | Condition hining Con gsbedingun beitungsbe | dition gen dingungen |
| Type Typ | Dimensio Abme | n (mm) ssung | 52 51 | 05 02 20 05 | 02 02 | 1 1 | ||||
| S±0.025 | Lamax | R/C | ØI.C | S1 | ød | YBC2 YBC2 | YBG1 YBG1 YB93 YBG2 | YBG2 YBG3 | YD10 YD20 | |
| QC22L100-R02 | 1.00 | 2.00 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | |||
| QC22R125-R02 | 1.25 | 2.00 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L125-R02 | 1.25 | 2.00 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | ○ | ||
| QC22R145-R02 | 1.45 | 2.00 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | ○ | ||
| QC22L145-R02 | 1.45 | 2.00 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | ○ | ||
| QC22R150-R02 | 1.50 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L150-R02 | 1.50 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22R163-R02 | 1.63 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | |||
| QC22R163-R03 | 1.63 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | |||
| QC22R175-R02 | 1.75 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L175-R02 | 1.75 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | ○ | ||
| QC22R185-R02 | 1.85 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L185-R02 | 1.85 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | ○ | ||
| QC22R195-R02 | 1.95 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | |||
| QC22R200-R02 | 2.00 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L200-R02 | 2.00 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22R225-R02 | 2.25 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | |||
| QC22R230-R02 | 2.30 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L230-R02 | 2.30 | 3.50 | R0.2 | 12.70 | 4.76 | 5.5 | ○ | ○ | ||
| QC22R250-R03 | 2.50 | 4.00 | R0.3 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L250-R03 | 2.50 | 4.00 | R0.3 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22R265-R03 | 2.65 | 4.00 | R0.3 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L265-R03 | 2.65 | 4.00 | R0.3 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22R280-R03 | 2.80 | 4.00 | R0.3 | 12.70 | 4.76 | 5.5 | ● | ○ | ||
| QC22L280-R03 | 2.80 | 4.00 | R0.3 | 12.70 | 4.76 | 5.5 | ● | ○ |
The code of other size for your order, for example: QC22R160-R03 if S±0.025=1.60mm, ØI.C=12.70mm and cutting edge with R=0.3mm Der Bestellnummernschlüssel: z.B.QC22R160-R03 liegt eine S±0.025=1.60mm, ØI.C=12.70mm und einen Schneideckradius R=0.3mm fest. KlemmhalterTool holder / QC Serie S***-QC**R/L*
Page / SeiteA323
