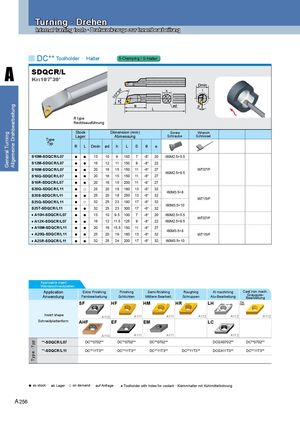

| DCToolho | lder | · H | alter | S- | Clam | ping / | S-H | alter | |||
| SDQCR/L Kr:107 o30' | |||||||||||
| R ty Rec | pe htsau | sführun | g | θ | |||||||
| Te | Sto La | ck ger | Dimen Abm | sion ( essun | mm) g | Screw Schraube | Wrench Schlüssel | ||||
| yp Typ | R | L | Dmin | ød | h | L | S | θ | e | ||
| S10M-SDQCR/L07 | ● | ● | 13 | 10 | 9 | 150 | 7 | -8° | 20 | I60M2.5×5.5 | |
| S12M-SDQCR/L07 | ● | ● | 16 | 12 | 11 | 150 | 9 | -8° | 22 | ||
| S16M-SDQCR/L07 | ● | ● | 20 | 16 | 15 | 150 | 11 | -6° | 27 | I60M25×65 | WT07IP |
| S16Q-SDQCR/L07 | ● | ● | 20 | 16 | 15 | 150 | 11 | -6° | 27 | .. | |
| S16R-SDQCR/L07 | ● | ● | 20 | 16 | 15 | 200 | 11 | -6° | 27 | ||
| S20Q-SDQCR/L11 | ● | ○ | 25 | 20 | 18 | 180 | 13 | -6° | 32 | I60M35×8 | |
| S20S-SDQCR/L11 | ● | ● | 25 | 20 | 18 | 250 | 13 | -6° | 32 | . | WT15IP |
| S25Q-SDQCR/L11 | ● | ○ | 32 | 25 | 23 | 180 | 17 | -6° | 32 | I60M35×10 | |
| S25T-SDQCR/L11 | ● | ● | 32 | 25 | 23 | 300 | 17 | -6° | 32 | . | |
| ♦A10H-SDQCR/L07 | ● | ● | 13 | 10 | 9.5 | 100 | 7 | -8° | 20 | I60M2.5×5.5 | |
| ♦A12K-SDQCR/L07 | ● | ● | 16 | 12 | 11.5 | 125 | 9 | -8° | 22 | I60M2.5×6.5 | WT07IP |
| ♦A16M-SDQCR/L11 | ● | ● | 20 | 16 | 15.5 | 150 | 11 | -6° | 27 | I60M35×8 | |
| ♦A20Q-SDQCR/L11 | ● | ● | 25 | 20 | 19 | 180 | 13 | -6° | 32 | . | WT15IP |
| ♦A25R-SDQCR/L11 | ● | ● | 32 | 25 | 24 | 200 | 17 | -6° | 32 | I60M3.5×10 |
Applicable insert Wendeschneidplatten
| Application | Extra Finishing | Finishing | Semi-finishing | Roughing | Al machining | Cast iron mach. |
| Anwendung | Feinbearbeitung | Schlichten | Mittlere Bearbeit. | Schruppen | Alu-Bearbeitung | Grauguss- |
| Bearbeitung |
| SF | HF | HM | HR | LH | Flat |
| Glatt |
Insert shape A110 A111 A111 A112 A112 A112
Schneidplattenform AHF EF EM LC
A110 A111 A111 A112
| **-SDQCR/L07 | DC**0702** | DC**0702** | DC**0702** | DCGX0702** | DC**0702** | |
| **-SDQCR/L11 | DC**11T3** | DC**11T3** | DC**11T3** | DC**11T3** | DCGX11T3** | DC**11T3** |
