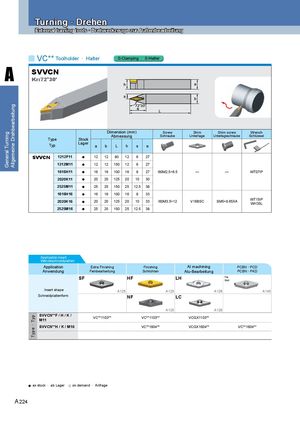

VC** Toolholder · Halter
A S-Clamping · S-Halter
SVVCN
Kr:72o30'
| | Dimension (mm) | Screw | Shim | | Shim screw | Wrench |
| | Abmessung | Schraube | Unterlage | Unterlagsschraube | | Schlüssel |
| Type | Stock | | | | | | |
| Typ | Lager | | | | | | |
| | a | b | L | h | s | e | | |
| SVVCN 1212F11 | ● | 12 | 12 | 80 | 12 | 6 | 27 | | |
| 1212M11 | ● | 12 | 12 | 150 | 12 | 6 | 27 | | |
| 1616H11 | ● | 16 | 16 | 100 | 16 | 8 | 27 | I60M2.5×6.5 | — — WT07IP |
| 2020K11 | ● | 20 | 20 | 125 | 20 | 10 | 30 | | |
| 2525M11 | ● | 25 | 25 | 150 | 25 | 12.5 | 38 | | |
| 1616H16 | ● | 16 | 16 | 100 | 16 | 8 | 33 | | |
| 2020K16 | ● | 20 | 20 | 125 | 20 | 10 | 33 | I60M3.5×12 | SM5×8.65XA V16BSC WT15IP |
| | | | | | | | | WH35L |
| 2525M16 | ● | 25 | 25 | 150 | 25 | 12.5 | 38 | | |
Applicable insert Wendeschneidplatten
| Application | Extra Finishing | Finishing | Al machining | PCBN ∙ PCD |
| Anwendung | Feinbearbeitung | Schlichten | Alu-Bearbeitung | PCBN ∙ PKD |
Insert shape A125 A125 A126 A145
| Schneidplattenform | NF | | LC | |
| | A125 | | A126 |
| SVVCN**F / H / K / | | | | |
| M11 | VC**1103** | VC**1103** | VCGX1103** | |
| SVVCN**H / K / M16 | | VC**1604** | VCGX1604** | VC**1604** |
