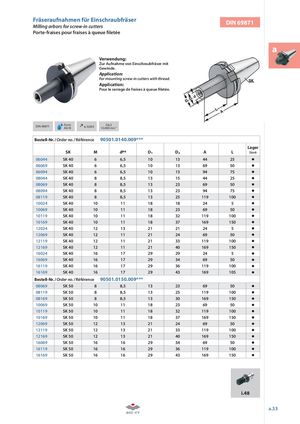

Fräseraufnahmen für Einschraubfräser DIN 69871
a
Verwendung: Zur Aufnahme von Einschraubfräser mit Gewinde.
Application: For mounting screw-in cutters with thread.
Application: Pour le serrage de fraises à queue fi letée.
Form ≤ G6,3
DIN 69871 AD/B 0,003 15.000 min
-1 Bestell-Nr. / Order no. / Référence 90501.0140.009***
| SK | M | dH4 | D1 | D2 | A | L | Lager Stock | |
| 06044 | SK 40 | 6 | 6,5 | 10 | 13 | 44 | 25 | |
| 06069 | SK 40 | 6 | 6,5 | 10 | 13 | 69 | 50 | |
| 06094 | SK 40 | 6 | 6,5 | 10 | 13 | 94 | 75 | |
| 08044 | SK 40 | 8 | 8,5 | 13 | 15 | 44 | 25 | |
| 08069 | SK 40 | 8 | 8,5 | 13 | 23 | 69 | 50 | |
| 08094 | SK 40 | 8 | 8,5 | 13 | 23 | 94 | 75 | |
| 08119 | SK 40 | 8 | 8,5 | 13 | 25 | 119 | 100 | |
| 10024 | SK 40 | 10 | 11 | 18 | 18 | 24 | 5 | |
| 10069 | SK 40 | 10 | 11 | 18 | 23 | 69 | 50 | |
| 10119 | SK 40 | 10 | 11 | 18 | 32 | 119 | 100 | |
| 10169 | SK 40 | 10 | 11 | 18 | 37 | 169 | 150 | |
| 12024 | SK 40 | 12 | 13 | 21 | 21 | 24 | 5 | |
| 12069 | SK 40 | 12 | 11 | 21 | 24 | 69 | 50 | |
| 12119 | SK 40 | 12 | 11 | 21 | 33 | 119 | 100 | |
| 12169 | SK 40 | 12 | 11 | 21 | 40 | 169 | 150 | |
| 16024 | SK 40 | 16 | 17 | 29 | 29 | 24 | 5 | |
| 16069 | SK 40 | 16 | 17 | 29 | 34 | 69 | 50 | |
| 16119 | SK 40 | 16 | 17 | 29 | 36 | 119 | 100 | |
| 16169 | SK 40 | 16 | 17 | 29 | 43 | 169 | 105 | |
| Bestell-Nr. | /Order no. / Réfé | rence 905 | 01.0150.009 | |||||
| 08069 | SK 50 | 8 | 8,5 | 13 | 23 | 69 | 50 | |
| 08119 | SK 50 | 8 | 8,5 | 13 | 25 | 119 | 100 | |
| 08169 | SK 50 | 8 | 8,5 | 13 | 30 | 169 | 150 | |
| 10069 | SK 50 | 10 | 11 | 18 | 23 | 69 | 50 | |
| 10119 | SK 50 | 10 | 11 | 18 | 32 | 119 | 100 | |
| 10169 | SK 50 | 10 | 11 | 18 | 37 | 169 | 150 | |
| 12069 | SK 50 | 12 | 13 | 21 | 24 | 69 | 50 | |
| 12119 | SK 50 | 12 | 13 | 21 | 33 | 119 | 100 | |
| 12169 | SK 50 | 12 | 13 | 21 | 40 | 169 | 150 | |
| 16069 | SK 50 | 16 | 16 | 29 | 34 | 69 | 50 | |
| 16119 | SK 50 | 16 | 16 | 29 | 36 | 119 | 100 | |
| 16169 | SK 50 | 16 | 16 | 29 | 43 | 169 | 150 |
