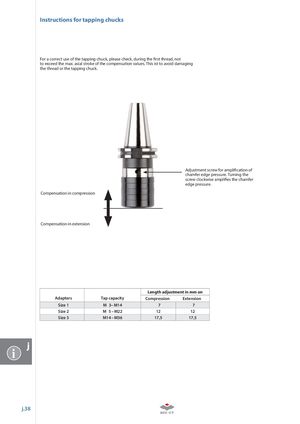

Instructions for tapping chucks
For a correct use of the tapping chuck, please check, during the fi rst thread, not to exceed the max. asial stroke of the compensation values. This ist to avoid damaging the thread or the tapping chuck.
Adjustment screw for amplifi cation of chamfer edge pressure. Turning the screw clockwise amplifi es the chamfer edge pressure. Compensation in compression
Compensation in extension
| Length adjustm | ent in mm on | ||
| Adapters | Tap capacity | Compression | Extension |
| Size 1 | M 3– M14 | 7 | 7 |
| Size 2 | M 5 – M22 | 12 | 12 |
| Size 3 | M14 – M36 | 17,5 | 17,5 |
