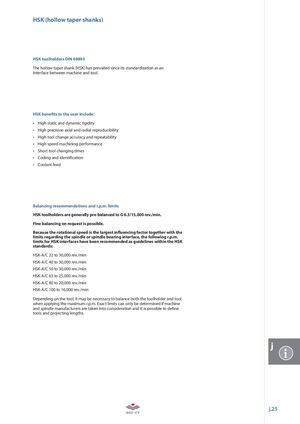

HSK (hollow taper shanks) HSK-toolholders DIN 69893 The hollow taper shank (HSK) has prevailed since its standardization as an interface between machine and tool. HSK bene ts to the user include: • High static and dynamic rigidity • High precision axial and radial reproducibility • High tool change accuracy and repeatability • High speed machining performance • Short tool changing times • Coding and identi cation • Coolant feed Balancing recommendations and r.p.m. limits HSK-toolholders are generally pre-balanced to G 6.3/15,000 rev./min. Fine balancing on request is possible. Because the rotational speed is the largest in uencing factor together with the limits regarding the spindle or spindle bearing interface, the following r.p.m. limits for HSK interfaces have been recommended as guidelines within the HSK standards: HSK-A/C 32 to 30,000 rev./min HSK-A/C 40 to 30,000 rev./min HSK-A/C 50 to 30,000 rev./min HSK-A/C 63 to 25,000 rev./min HSK-A/C 80 to 20,000 rev./min HSK-A/C 100 to 16,000 rev./min Depending on the tool, it may be necessary to balance both the toolholder and tool when applying the maximum r.p.m. Exact limits can only be determined if machine and spindle manufacturers are taken into consideration and it is possible to de ne tools and projecting lengths. j i j.25
