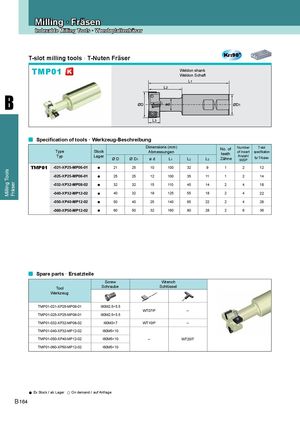

T-slot milling tools · T-Nuten Fräser Kr:90o
TMP01 Weldon shank
Weldon Schaft
B
Specification of tools · Werkzeug-Beschreibung
| Type | Stock | Dimensio Abmes | ns (mm) sungen | No. of teeth | Number of insert | T-slot specification | |||||
| Tp | Laer | Anzahl | |||||||||
| y | g | Ø D | Ø D1 | ø d | L1 | L2 | L3 | Zähne | WSP | für T-Nuten | |
| TMP01 | -021-XP25-MP06-01 | ● | 21 | 25 | 10 | 100 | 32 | 9 | 1 | 2 | 12 |
| -025-XP25-MP06-01 | ● | 25 | 25 | 12 | 100 | 35 | 11 | 1 | 2 | 14 | |
| -032-XP32-MP08-02 | ● | 32 | 32 | 15 | 110 | 45 | 14 | 2 | 4 | 18 | |
| -040-XP32-MP12-02 | ● | 40 | 32 | 19 | 125 | 55 | 18 | 2 | 4 | 22 | |
| -050-XP40-MP12-02 | ● | 50 | 40 | 25 | 140 | 65 | 22 | 2 | 4 | 28 | |
| -060-XP50-MP12-02 | ● | 60 | 50 | 32 | 160 | 80 | 28 | 2 | 6 | 36 |
Spare parts · Ersatzteile
| Tool | Screw Schraube | Wre Schlü | nch ssel |
| Werkzeug | |||
| TMP01-021-XP25-MP06-01 | I60M2.5×5.5 | WT07IP | -- |
| TMP01-025-XP25-MP06-01 | I60M2.5×5.5 | ||
| TMP01-032-XP32-MP08-02 | I60M3×7 | WT10IP | -- |
| TMP01-040-XP32-MP12-02 | I60M5×10 | ||
| TMP01-050-XP40-MP12-02 | I60M5×10 | -- | WT20IT |
| TMP01-060-XP50-MP12-02 | I60M5×10 |
