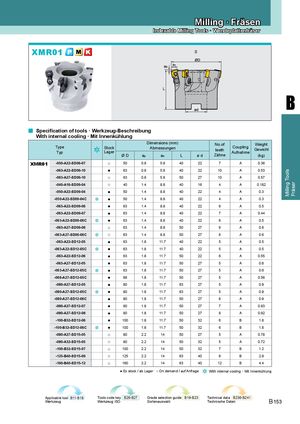

XMR01
Specification of tools · Werkzeug-Beschreibung
With internal cooling · Mit Innenkühlung
ae
S
B
| Type | Stock | Dim A | ensions (m | m) | No.of | Coupling | Weight | |||
| T | Lager | messung | n | teeth | Aufnahme | Gewicht | ||||
| yp | Ø D | ap | ae | L | ø d | Zähne | (kg) | |||
| XMR01 | -050-A22-SD06-07 | ○ | 50 | 0.8 | 5.8 | 40 | 22 | 7 | A | 0.36 |
| -063-A22-SD06-10 | ● | 63 | 0.8 | 5.8 | 40 | 22 | 10 | A | 0.53 | |
| -063-A27-SD06-10 | ○ | 63 | 0.8 | 5.8 | 50 | 27 | 10 | A | 0.57 | |
| -040-A16-SD09-04 | ○ | 40 | 1.4 | 8.8 | 40 | 16 | 4 | A | 0.182 | |
| -050-A22-SD09-04 | ● | 50 | 1.4 | 8.8 | 40 | 22 | 4 | A | 0.3 | |
| -050-A22-SD09-04C | ● | 50 | 1.4 | 8.8 | 40 | 22 | 4 | A | 0.3 | |
| -063-A22-SD09-06 | ● | 63 | 1.4 | 8.8 | 40 | 22 | 6 | A | 0.5 | |
| -063-A22-SD09-07 | ● | 63 | 1.4 | 8.8 | 40 | 22 | 7 | A | 0.44 | |
| -063-A22-SD09-06C | ● | 63 | 1.4 | 8.8 | 40 | 22 | 6 | A | 0.5 | |
| -063-A27-SD09-06 | ○ | 63 | 1.4 | 8.8 | 50 | 27 | 6 | A | 0.6 | |
| -063-A27-SD09-06C | ○ | 63 | 1.4 | 8.8 | 50 | 27 | 6 | A | 0.6 | |
| -063-A22-SD12-05 | ● | 63 | 1.8 | 11.7 | 40 | 22 | 5 | A | 0.5 | |
| -063-A22-SD12-05C | ● | 63 | 1.8 | 11.7 | 40 | 22 | 5 | A | 0.5 | |
| -063-A22-SD12-06 | ● | 63 | 1.8 | 11.7 | 50 | 22 | 6 | A | 0.55 | |
| -063-A27-SD12-05 | ● | 63 | 1.8 | 11.7 | 50 | 27 | 5 | A | 0.6 | |
| -063-A27-SD12-05C | ● | 63 | 1.8 | 11.7 | 50 | 27 | 5 | A | 0.6 | |
| -066-A27-SD12-05C | ● | 66 | 1.8 | 11.7 | 50 | 27 | 5 | A | 0.56 | |
| -080-A27-SD12-05 | ● | 80 | 1.8 | 11.7 | 63 | 27 | 5 | A | 0.9 | |
| -080-A27-SD12-05C | ● | 80 | 1.8 | 11.7 | 63 | 27 | 5 | A | 0.9 | |
| -080-A27-SD12-06C | ● | 80 | 1.8 | 11.7 | 50 | 27 | 6 | A | 0.9 | |
| -080-A27-SD12-07 | ● | 80 | 1.8 | 11.7 | 50 | 27 | 7 | A | 0.93 | |
| -080-A27-SD12-08 | ● | 80 | 1.8 | 11.7 | 50 | 27 | 8 | A | 0.92 | |
| -100-B32-SD12-06 | ● | 100 | 1.8 | 11.7 | 50 | 32 | 6 | B | 1.8 | |
| -100-B32-SD12-06C | ● | 100 | 1.8 | 11.7 | 50 | 32 | 6 | B | 1.8 | |
| -080-A27-SD15-05 | ○ | 80 | 2.2 | 14 | 50 | 27 | 5 | A | 0.78 | |
| -080-A32-SD15-05 | ○ | 80 | 2.2 | 14 | 50 | 32 | 5 | A | 0.72 | |
| -100-B32-SD15-07 | ○ | 100 | 2.2 | 14 | 50 | 32 | 7 | B | 1.2 | |
| -125-B40-SD15-09 | ○ | 125 | 2.2 | 14 | 63 | 40 | 9 | B | 2.9 | |
| -160-B40-SD15-12 | ○ | 160 | 2.2 | 14 | 63 | 40 | 12 | B | 4.4 |
- Ex stock / ab Lager ○ On demand / auf Anfrage With internal cooling · Mit Innenkühlung
