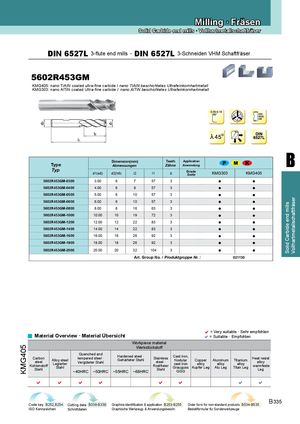

DIN 6527L 3-flute end mills · DIN 6527L 3- Schneiden VHM Schaftfräser
KMG405: nano TiAIN coated ultra-fine carbide / nano TiAIN beschichtetes Ultrafeinkornhartmetall KMG303: nano AlTiN coated Ultra-fine carbide / nano AlTiN beschichtetes Ultrafeinkornhartmetall
BB
| Type | Dimensio Abmessu | n(mm) ngen | Teeth Zähne | Application Anwendung | ||||
| Typ | d1(e8) | d2(h6) | l2 | l1 | z | Grade Sorte | KMG303 | KMG405 |
| 5602R453GM-0300 | 3.00 | 6 | 7 | 57 | 3 | ● | ● | |
| 5602R453GM-0400 | 4.00 | 6 | 8 | 57 | 3 | ● | ● | |
| 5602R453GM-0500 | 5.00 | 6 | 10 | 57 | 3 | ● | ● | |
| 5602R453GM-0600 | 6.00 | 6 | 10 | 57 | 3 | ● | ● | |
| 5602R453GM-0800 | 8.00 | 8 | 16 | 63 | 3 | ● | ● | |
| 5602R453GM-1000 | 10.00 | 10 | 19 | 72 | 3 | ● | ● | |
| 5602R453GM-1200 | 12.00 | 12 | 22 | 83 | 3 | ● | ● | |
| 5602R453GM-1400 | 14.00 | 14 | 22 | 83 | 3 | ● | ● | |
| 5602R453GM-1600 | 16.00 | 16 | 26 | 92 | 3 | ● | ● | |
| 5602R453GM-1800 | 18.00 | 18 | 26 | 92 | 3 | ● | ● | |
| 5602R453GM-2000 | 20.00 | 20 | 32 | 104 | 3 | ● | ● | |
| Art. G | roup No. / | Produkt | gruppe Nr. : | 021130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quench tempere ~40HRC Vergütet | ed and d steel · ~50HRC er Stahl | Hardene ~55HRC Gehärtet | Workpiece d steel · ~68HRC Werkstü er Stahl | material Stainless steel · ckstoff Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | | | |
