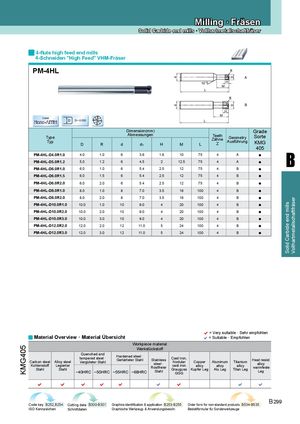

Каталог ZCC-CT фрезы монолитные - страница 59

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

4-flute high feed end mills
4-Schneiden "High Feed" VHM-Fräser
PM-4HL R
A


D
d
10° H
M
L
R
B


D
d
H
M
Coated
D D~-0.030 L
Nano-AITiN
Dimension(mm) Grade
Abmessungen Teeth
Type Geometry
Zähne Ausführung
Sorte
Typ Z KMG
D R d d1 H M L
405

B
PM-4HL-D4.0R1.0 4.0 1.0 6 3.6 1.6 10 75 4 A ●
PM-4HL-D5.0R1.2 5.0 1.2 6 4.5 2 12.5 75 4 A ●
PM-4HL-D6.0R1.0 6.0 1.0 6 5.4 2.5 12 75 4 B ●
PM-4HL-D6.0R1.5 6.0 1.5 6 5.4 2.5 12 75 4 B ●
PM-4HL-D6.0R2.0 6.0 2.0 6 5.4 2.5 12 75 4 B ●
PM-4HL-D8.0R1.0 8.0 1.0 8 7.0 3.5 16 100 4 B ●
PM-4HL-D8.0R2.0 8.0 2.0 8 7.0 3.5 16 100 4 B ●


Vollhartmetallschaftfräser
●


Solid Carbide end mills
PM-4HL-D10.0R1.0 10.0 1.0 10 9.0 4 20 100 4 B
PM-4HL-D10.0R2.0 10.0 2.0 10 9.0 4 20 100 4 B ●
PM-4HL-D10.0R3.0 10.0 3.0 10 9.0 4 20 100 4 B ●
PM-4HL-D12.0R2.0 12.0 2.0 12 11.0 5 24 100 4 B ●
PM-4HL-D12.0R3.0 12.0 3.0 12 11.0 5 24 100 4 B ●


= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG405


Werkstückstoff
Quenched and
Hardened steel ·
tempered steel · Cast iron,
Gehärteter Stahl Stainless Heat resist
Carbon steel Alloy steel Vergüteter Stahl Nodular Copper Aluminum Titanium
steel · alloy
Kohlenstoff Legierter cast iron alloy alloy alloy
Rostfreier warmfeste
Stahl Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
~40HRC ~50HRC ~55HRC ~68HRC Stahl Leg
GGG

        
Code key B252,B254 Cutting data B300-B301 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 299
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
