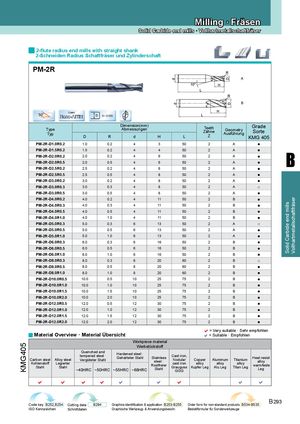

Каталог ZCC-CT фрезы монолитные - страница 53

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

2-flute radius end mills with straight shank
2-Schneiden Radius Schaftfräser und Zylinderschaft
PM-2R
A


B
Coated
30o D 0~-0.020
Nano-AITiN
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
D R d H L Z KMG 405
PM-2R-D1.0R0.2 1.0 0.2 4 3 50 2 A ●

B
PM-2R-D1.5R0.2 1.5 0.2 4 4 50 2 A ●
PM-2R-D2.0R0.2 2.0 0.2 4 6 50 2 A ●
PM-2R-D2.0R0.5 2.0 0.5 4 6 50 2 A ●
PM-2R-D2.5R0.2 2.5 0.2 4 8 50 2 A ●
PM-2R-D2.5R0.5 2.5 0.5 4 8 50 2 A ●
PM-2R-D3.0R0.2 3.0 0.2 4 8 50 2 A ●
PM-2R-D3.0R0.3 3.0 0.3 4 8 50 2 A ○
PM-2R-D3.0R0.5 3.0 0.5 4 8 50 2 A ●
PM-2R-D4.0R0.2 4.0 0.2 4 11 50 2 B ●


Vollhartmetallschaftfräser
Solid Carbide end mills
PM-2R-D4.0R0.3 4.0 0.3 4 11 50 2 B ●
PM-2R-D4.0R0.5 4.0 0.5 4 11 50 2 B ●
PM-2R-D4.0R1.0 4.0 1.0 4 11 50 2 B ●
PM-2R-D5.0R0.3 5.0 0.3 6 13 50 2 A ○
PM-2R-D5.0R0.5 5.0 0.5 6 13 50 2 A ●
PM-2R-D5.0R1.0 5.0 1.0 6 13 50 2 A ●
PM-2R-D6.0R0.3 6.0 0.3 6 16 50 2 B ●
PM-2R-D6.0R0.5 6.0 0.5 6 16 50 2 B ●
PM-2R-D6.0R1.0 6.0 1.0 6 16 50 2 B ●
PM-2R-D8.0R0.3 8.0 0.3 8 20 60 2 B ○
PM-2R-D8.0R0.5 8.0 0.5 8 20 60 2 B ●
PM-2R-D8.0R1.0 8.0 1.0 8 20 60 2 B ●
PM-2R-D10.0R0.5 10.0 0.5 10 25 75 2 B ●
PM-2R-D10.0R1.0 10.0 1.0 10 25 75 2 B ●
PM-2R-D10.0R1.5 10.0 1.5 10 25 75 2 B ●
PM-2R-D10.0R2.0 10.0 2.0 10 25 75 2 B ●
PM-2R-D12.0R0.5 12.0 0.5 12 30 75 2 B ●
PM-2R-D12.0R1.0 12.0 1.0 12 30 75 2 B ●
PM-2R-D12.0R1.5 12.0 1.5 12 30 75 2 B ●
PM-2R-D12.0R2.0 12.0 2.0 12 30 75 2 B ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG405


Werkstückstoff
Quenched and
Hardened steel ·
tempered steel · Cast iron,
Gehärteter Stahl Stainless Heat resist
Carbon steel Alloy steel Vergüteter Stahl Nodular Copper Aluminum Titanium
steel · alloy
Kohlenstoff Legierter cast iron alloy alloy alloy
Rostfreier warmfeste
Stahl Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
~40HRC ~50HRC ~55HRC ~68HRC Stahl Leg
GGG

        

Code key B252,B254 Cutting data B294 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
