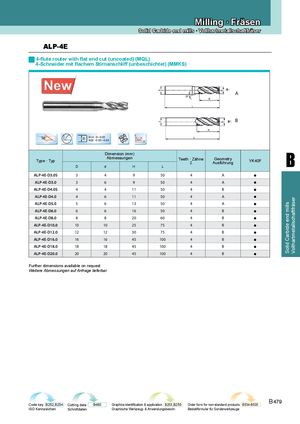

ALP-4E
4-flute router with flat end cut (uncoated) (MQL)
4-Schneider mit flachem Stirnanschliff (unbeschichtet) (MMKS)
| 38 o | D 4≤D D | 0~-0.02 -0.02~-0.04 | Vc | A B | |||
| Type · Typ | Dime Abm | nsion (mm) essungen | Teeth · Zähne Z | Geometry Ausführung | YK40F | ||
| D | d | H | L | ||||
| ALP-4E-D3.0S | 3 | 4 | 9 | 50 | 4 | A | ● |
| ALP-4E-D3.0 | 3 | 6 | 9 | 50 | 4 | A | ● |
| ALP-4E-D4.0S | 4 | 4 | 11 | 50 | 4 | B | ● |
| ALP-4E-D4.0 | 4 | 6 | 11 | 50 | 4 | A | ● |
| ALP-4E-D5.0 | 5 | 6 | 13 | 50 | 4 | A | ● |
| ALP-4E-D6.0 | 6 | 6 | 16 | 50 | 4 | B | ● |
| ALP-4E-D8.0 | 8 | 8 | 20 | 60 | 4 | B | ● |
| ALP-4E-D10.0 | 10 | 10 | 25 | 75 | 4 | B | ● |
| ALP-4E-D12.0 | 12 | 12 | 30 | 75 | 4 | B | ● |
| ALP-4E-D16.0 | 16 | 16 | 45 | 100 | 4 | B | ● |
| ALP-4E-D18.0 | 18 | 18 | 45 | 100 | 4 | B | ● |
| ALP-4E-D20.0 | 20 | 20 | 45 | 100 | 4 | B | ● |
Further dimensions available on request Weitere Abmessungen auf Anfrage lieferbar
