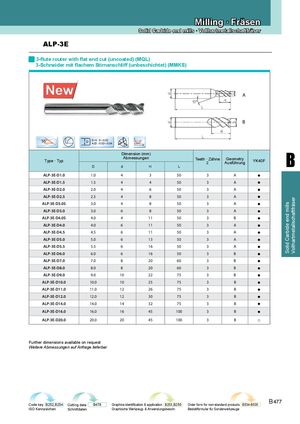

ALP-3E
3-flute router with flat end cut (uncoated) (MQL)
3-Schneider mit flachem Stirnanschliff (unbeschichtet) (MMKS)
| A | |||||||
| B | |||||||
| 35 o | D 4≤D -002~- D | 2 004 | |||||
| . | . | Vc | |||||
| Dimen | sion (mm) | ||||||
| Type · Typ | Abm | essungen | Teeth · Zähne | Geometry | YK40F | ||
| D | d | H | L | Z | Ausführung | ||
| ALP-3E-D1.0 | 1.0 | 4 | 3 | 50 | 3 | A | ● |
| ALP-3E-D1.5 | 1.5 | 4 | 4 | 50 | 3 | A | ● |
| ALP-3E-D2.0 | 2.0 | 4 | 6 | 50 | 3 | A | ● |
| ALP-3E-D2.5 | 2.5 | 4 | 8 | 50 | 3 | A | ● |
| ALP-3E-D3.0S | 3.0 | 4 | 8 | 50 | 3 | A | ● |
| ALP-3E-D3.0 | 3.0 | 6 | 8 | 50 | 3 | A | ● |
| ALP-3E-D4.0S | 4.0 | 4 | 11 | 50 | 3 | B | ● |
| ALP-3E-D4.0 | 4.0 | 6 | 11 | 50 | 3 | A | ● |
| ALP-3E-D4.5 | 4.5 | 6 | 11 | 50 | 3 | A | ● |
| ALP-3E-D5.0 | 5.0 | 6 | 13 | 50 | 3 | A | ● |
| ALP-3E-D5.5 | 5.5 | 6 | 16 | 50 | 3 | A | ● |
| ALP-3E-D6.0 | 6.0 | 6 | 16 | 50 | 3 | B | ● |
| ALP-3E-D7.0 | 7.0 | 8 | 20 | 60 | 3 | B | ● |
| ALP-3E-D8.0 | 8.0 | 8 | 20 | 60 | 3 | B | ● |
| ALP-3E-D9.0 | 9.0 | 10 | 22 | 75 | 3 | B | ● |
| ALP-3E-D10.0 | 10.0 | 10 | 25 | 75 | 3 | B | ● |
| ALP-3E-D11.0 | 11.0 | 12 | 26 | 75 | 3 | B | ● |
| ALP-3E-D12.0 | 12.0 | 12 | 30 | 75 | 3 | B | ● |
| ALP-3E-D14.0 | 14.0 | 14 | 32 | 75 | 3 | B | ● |
| ALP-3E-D16.0 | 16.0 | 16 | 45 | 100 | 3 | B | ● |
| ALP-3E-D20.0 | 20.0 | 20 | 45 | 100 | 3 | B | ○ |
Further dimensions available on request Weitere Abmessungen auf Anfrage lieferbar
