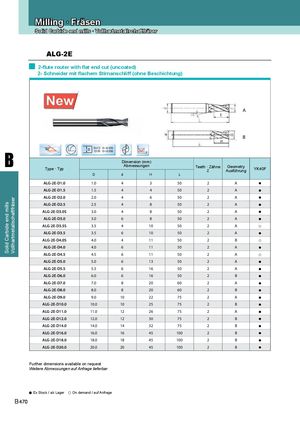

Каталог ZCC-CT фрезы монолитные - страница 230
Навигация
Каталог ZCC-CT оснастка
Каталог ZCC-CT фрезы со сменными пластинами
Каталог ZCC-CT сверла со сменными пластинами
Каталог ZCC-CT токарная обработка
Каталог ZCC-CT сверла монолитные
ALG-2E
2-flute router with flat end cut (uncoated)
2- Schneider mit flachem Stirnanschliff (ohne Beschichtung)
| A | |||||||
| B | |||||||
| 30 o | D≤12 0~-0 12 D | .020 .030 | Vc | ||||
| Type · Typ | Dimen Abme | sion (mm) ssungen | Teeth · Zähne Z | Geometry Ausführun | YK40F | ||
| D | d | H | L | g | |||
| ALG-2E-D1.0 | 1.0 | 4 | 3 | 50 | 2 | A | ● |
| ALG-2E-D1.5 | 1.5 | 4 | 4 | 50 | 2 | A | ● |
| ALG-2E-D2.0 | 2.0 | 4 | 6 | 50 | 2 | A | ● |
| ALG-2E-D2.5 | 2.5 | 4 | 8 | 50 | 2 | A | ● |
| ALG-2E-D3.0S | 3.0 | 4 | 8 | 50 | 2 | A | ● |
| ALG-2E-D3.0 | 3.0 | 6 | 8 | 50 | 2 | A | ● |
| ALG-2E-D3.5S | 3.5 | 4 | 10 | 50 | 2 | A | ○ |
| ALG-2E-D3.5 | 3.5 | 6 | 10 | 50 | 2 | A | ● |
| ALG-2E-D4.0S | 4.0 | 4 | 11 | 50 | 2 | B | ○ |
| ALG-2E-D4.0 | 4.0 | 6 | 11 | 50 | 2 | A | ● |
| ALG-2E-D4.5 | 4.5 | 6 | 11 | 50 | 2 | A | ○ |
| ALG-2E-D5.0 | 5.0 | 6 | 13 | 50 | 2 | A | ● |
| ALG-2E-D5.5 | 5.5 | 6 | 16 | 50 | 2 | A | ● |
| ALG-2E-D6.0 | 6.0 | 6 | 16 | 50 | 2 | B | ● |
| ALG-2E-D7.0 | 7.0 | 8 | 20 | 60 | 2 | A | ● |
| ALG-2E-D8.0 | 8.0 | 8 | 20 | 60 | 2 | B | ● |
| ALG-2E-D9.0 | 9.0 | 10 | 22 | 75 | 2 | A | ● |
| ALG-2E-D10.0 | 10.0 | 10 | 25 | 75 | 2 | B | ● |
| ALG-2E-D11.0 | 11.0 | 12 | 26 | 75 | 2 | A | ● |
| ALG-2E-D12.0 | 12.0 | 12 | 30 | 75 | 2 | B | ● |
| ALG-2E-D14.0 | 14.0 | 14 | 32 | 75 | 2 | B | ● |
| ALG-2E-D16.0 | 16.0 | 16 | 45 | 100 | 2 | B | ● |
| ALG-2E-D18.0 | 18.0 | 18 | 45 | 100 | 2 | B | ● |
| ALG-2E-D20.0 | 20.0 | 20 | 45 | 100 | 2 | B | ● |
Further dimensions available on request Weitere Abmessungen auf Anfrage lieferbar
