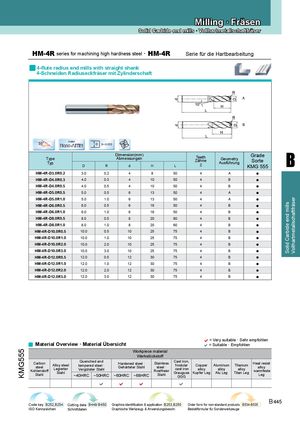

Каталог ZCC-CT фрезы монолитные - страница 205

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

HM-4R series for machining high hardness steel · HM-4R Serie für die Hartbearbeitung
4-flute radius end mills with straight shank
4-Schneiden Radiuseckfräser mit Zylinderschaft

A


B

Coated
35o D 0~-0.020
Nano-AITiN

B
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
Typ
Zähne Ausführung Sorte
Z
D R d H L KMG 555
HM-4R-D3.0R0.2 3.0 0.2 4 8 50 4 A ●
HM-4R-D4.0R0.3 4.0 0.3 4 10 50 4 B ●
HM-4R-D4.0R0.5 4.0 0.5 4 10 50 4 B ●
HM-4R-D5.0R0.5 5.0 0.5 6 13 50 4 A ●
HM-4R-D5.0R1.0 5.0 1.0 6 13 50 4 A ●


Vollhartmetallschaftfräser
Solid Carbide end mills
HM-4R-D6.0R0.5 6.0 0.5 6 16 50 4 B ●
HM-4R-D6.0R1.0 6.0 1.0 6 16 50 4 B ●
HM-4R-D8.0R0.5 8.0 0.5 8 20 60 4 B ●
HM-4R-D8.0R1.0 8.0 1.0 8 20 60 4 B ●
HM-4R-D10.0R0.5 10.0 0.5 10 25 75 4 B ●
HM-4R-D10.0R1.0 10.0 1.0 10 25 75 4 B ●
HM-4R-D10.0R2.0 10.0 2.0 10 25 75 4 B ●
HM-4R-D10.0R3.0 10.0 3.0 10 25 75 4 B ●
HM-4R-D12.0R0.5 12.0 0.5 12 30 75 4 B ●
HM-4R-D12.0R1.0 12.0 1.0 12 30 75 4 B ●
HM-4R-D12.0R2.0 12.0 2.0 12 30 75 4 B ●
HM-4R-D12.0R3.0 12.0 3.0 12 30 75 4 B ●


= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG555


Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
   
Code key B252,B254 Cutting data B448-B450 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
