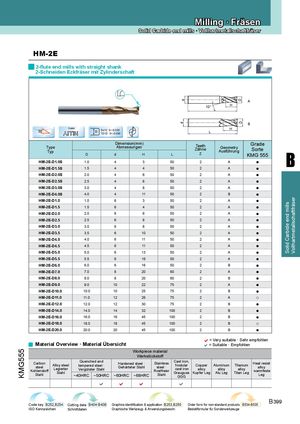

Каталог ZCC-CT фрезы монолитные - страница 159

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

HM-2E
2-flute end mills with straight shank
2-Schneiden Eckfräser mit Zylinderschaft


D
A


d
10° H
L


D
B


d
Coated
D≤12 0~-0.020 H
35o D L
AITiN 12<D 0~-0.030

Dimension(mm) Grade
Type Abmessungen Teeth Geometry

B
Typ
Zähne Ausführung Sorte
Z
D d H L KMG 555
HM-2E-D1.0S 1.0 4 3 50 2 A ●
HM-2E-D1.5S 1.5 4 4 50 2 A ●
HM-2E-D2.0S 2.0 4 6 50 2 A ●
HM-2E-D2.5S 2.5 4 8 50 2 A ●
HM-2E-D3.0S 3.0 4 8 50 2 A ●
HM-2E-D4.0S 4.0 4 11 50 2 B ●


Vollhartmetallschaftfräser
HM-2E-D1.0 1.0 6 3 50 2 A ●


Solid Carbide end mills
HM-2E-D1.5 1.5 6 4 50 2 A ●
HM-2E-D2.0 2.0 6 6 50 2 A ●
HM-2E-D2.5 2.5 6 8 50 2 A ●
HM-2E-D3.0 3.0 6 8 50 2 A ●
HM-2E-D3.5 3.5 6 10 50 2 A ●
HM-2E-D4.0 4.0 6 11 50 2 A ●
HM-2E-D4.5 4.5 6 11 50 2 A ●
HM-2E-D5.0 5.0 6 13 50 2 A ●
HM-2E-D5.5 5.5 6 16 50 2 A ●
HM-2E-D6.0 6.0 6 16 50 2 B ●
HM-2E-D7.0 7.0 8 20 60 2 A ●
HM-2E-D8.0 8.0 8 20 60 2 B ●
HM-2E-D9.0 9.0 10 22 75 2 A ●
HM-2E-D10.0 10.0 10 25 75 2 B ●
HM-2E-D11.0 11.0 12 26 75 2 A ○
HM-2E-D12.0 12.0 12 30 75 2 B ●
HM-2E-D14.0 14.0 14 32 100 2 B ●
HM-2E-D16.0 16.0 16 45 100 2 B ●
HM-2E-D18.0 18.0 18 45 100 2 B ○
HM-2E-D20.0 20.0 20 45 100 2 B ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG555


Werkstückstoff
Quenched and Cast iron,
Carbon Hardened steel · Stainless Heat resist
Alloy steel tempered steel · Nodular Copper Aluminum Titanium
steel Gehärteter Stahl steel · alloy
Legierter Vergüteter Stahl cast iron alloy alloy alloy
Kohlenstoff Rostfreier warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl ~40HRC ~50HRC ~60HRC ~68HRC Stahl Leg
GGG
   
Code key B252,B254 Cutting data B404-B408 Graphics identification & application B253,B255 Order form for non-standard products B534-B535
B 399
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
