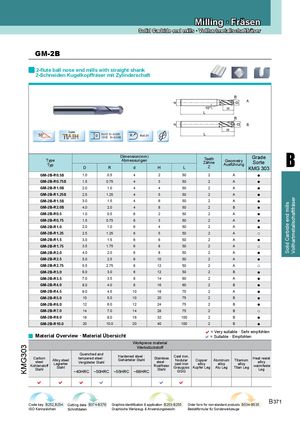

Каталог ZCC-CT фрезы монолитные - страница 131

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser

GM-2B
2-flute ball nose end mills with straight shank
2-Schneiden Kugelkopffräser mit Zylinderschaft


A


B
Coated
35o D≤12 0~-0.020
TiAIN D 12<D 0~-0.030
R R±0.01


Type
Typ
D R
Dimension(mm)
Abmessungen
d H L
Teeth
Zähne
Z
Geometry
Ausführung
Grade
Sorte
KMG 303
B
GM-2B-R0.5S 1.0 0.5 4 2 50 2 A ●
GM-2B-R0.75S 1.5 0.75 4 3 50 2 A ●
GM-2B-R1.0S 2.0 1.0 4 4 50 2 A ●
GM-2B-R1.25S 2.5 1.25 4 5 50 2 A ●


Vollhartmetallschaftfräser
GM-2B-R1.5S 3.0 1.5 4 6 50 2 A ●


Solid Carbide end mills
GM-2B-R2.0S 4.0 2.0 4 8 50 2 B ●
GM-2B-R0.5 1.0 0.5 6 2 50 2 A ●
GM-2B-R0.75 1.5 0.75 6 3 50 2 A ●
GM-2B-R1.0 2.0 1.0 6 4 50 2 A ●
GM-2B-R1.25 2.5 1.25 6 5 50 2 A ○
GM-2B-R1.5 3.0 1.5 6 6 50 2 A ●
GM-2B-R1.75 3.5 1.75 6 8 50 2 A ○
GM-2B-R2.0 4.0 2.0 6 8 50 2 A ●
GM-2B-R2.5 5.0 2.5 6 10 50 2 A ●
GM-2B-R2.75 5.5 2.75 6 12 50 2 A ○
GM-2B-R3.0 6.0 3.0 6 12 50 2 B ●
GM-2B-R3.5 7.0 3.5 8 14 60 2 A ●
GM-2B-R4.0 8.0 4.0 8 16 60 2 B ●
GM-2B-R4.5 9.0 4.5 10 18 75 2 A ●
GM-2B-R5.0 10 5.0 10 20 75 2 B ●
GM-2B-R6.0 12 6.0 12 24 75 2 B ●
GM-2B-R7.0 14 7.0 14 28 75 2 B ○
GM-2B-R8.0 16 8.0 16 32 100 2 B ●
GM-2B-R10.0 20 10.0 20 40 100 2 B ●
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303


Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG

     

Code key B252,B254 Cutting data B374-B376 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 371
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
