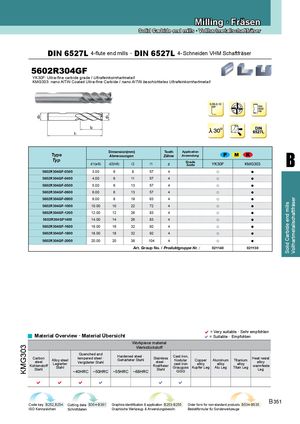

DIN 6527L 4-flute end mills · DIN 6527L 4- Schneiden VHM Schaftfräser
YK30F: Ultra-fine carbide grade / Ultrafeinkornhartmetall KMG303: nano AlTiN Coated Ultra-fine Carbide / nano AITiN beschichtetes Ultrafeinkornhartmetall
| Type | Dimensio Abmessu | n(mm) ngen | Teeth Zähne | Application Anwendung | ||||
| Typ | Grade | |||||||
| d1(e8) | d2(h6) | l2 | l1 | z | Sorte | YK30F | KMG303 | |
| 5602R304GF-0300 | 3.00 | 6 | 8 | 57 | 4 | ○ | ● | |
| 5602R304GF-0400 | 4.00 | 6 | 11 | 57 | 4 | ○ | ● | |
| 5602R304GF-0500 | 5.00 | 6 | 13 | 57 | 4 | ○ | ● | |
| 5602R304GF-0600 | 6.00 | 6 | 13 | 57 | 4 | ○ | ● | |
| 5602R304GF-0800 | 8.00 | 8 | 19 | 63 | 4 | ○ | ● | |
| 5602R304GF-1000 | 10.00 | 10 | 22 | 72 | 4 | ○ | ● | |
| 5602R304GF-1200 | 12.00 | 12 | 26 | 83 | 4 | ○ | ● | |
| 5602R304GF1400 | 14.00 | 14 | 26 | 83 | 4 | ○ | ● | |
| 5602R304GF-1600 | 16.00 | 16 | 32 | 92 | 4 | ○ | ● | |
| 5602R304GF-1800 | 18.00 | 18 | 32 | 92 | 4 | ○ | ● | |
| 5602R304GF-2000 | 20.00 | 20 | 38 | 104 | 4 | ○ | ● | |
| Art. | Group No. | / Produkt | gruppe Nr. : | 021140 | 021130 |
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
| Workpiece Werkstü | material ckstoff | ||||||||||
| Carbon steel Kohlenstoff Stahl | Alloy steel Legierter Stahl | Quenc temper ~40HRC Vergüte | hed and ed steel · ~50HRC ter Stahl | Hardene ~55HRC Gehärtet | d steel · ~68HRC er Stahl | Stainless steel · Rostfreier Stahl | Cast iron, Nodular cast iron Grauguss GGG | Copper alloy Kupfer Leg | Aluminum alloy Alu Leg | Titanium alloy Titan Leg | Heat resist alloy warmfeste Leg |
| | | | | | | ||||||
