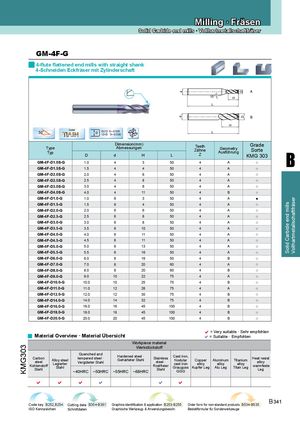

Milling · Fräsen
Solid Carbide end mills · Vollhartmetallschaftfräser
GM-4F-G
4-flute flattened end mills with straight shank
4-Schneiden Eckfräser mit Zylinderschaft
A
D
d
10° H
L
B
D
d
H
Coated
30 o D≤12 0~-0.020 L
TiAIN D 12<D 0~-0.030
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
B
Typ
Zähne Ausführung Sorte
D d H L Z KMG 303
GM-4F-D1.0S-G 1.0 4 3 50 4 A ○
GM-4F-D1.5S-G 1.5 4 4 50 4 A ○
GM-4F-D2.0S-G 2.0 4 6 50 4 A ○
GM-4F-D2.5S-G 2.5 4 8 50 4 A ○
GM-4F-D3.0S-G 3.0 4 8 50 4 A ○
GM-4F-D4.0S-G 4.0 4 11 50 4 B ○
GM-4F-D1.0-G 1.0 6 3 50 4 A ●
Vollhartmetallschaftfräser
GM-4F-D1.5-G ○
Solid Carbide end mills
1.5 6 4 50 4 A
GM-4F-D2.0-G 2.0 6 6 50 4 A ○
GM-4F-D2.5-G 2.5 6 8 50 4 A ○
GM-4F-D3.0-G 3.0 6 8 50 4 A ○
GM-4F-D3.5-G 3.5 6 10 50 4 A ○
GM-4F-D4.0-G 4.0 6 11 50 4 A ○
GM-4F-D4.5-G 4.5 6 11 50 4 A ○
GM-4F-D5.0-G 5.0 6 13 50 4 A ○
GM-4F-D5.5-G 5.5 6 16 50 4 A ○
GM-4F-D6.0-G 6.0 6 16 50 4 B ○
GM-4F-D7.0-G 7.0 8 20 60 4 A ○
GM-4F-D8.0-G 8.0 8 20 60 4 B ○
GM-4F-D9.0-G 9.0 10 22 75 4 A ○
GM-4F-D10.0-G 10.0 10 25 75 4 B ○
GM-4F-D11.0-G 11.0 12 26 75 4 A ○
GM-4F-D12.0-G 12.0 12 30 75 4 B ○
GM-4F-D14.0-G 14.0 14 32 75 4 B ○
GM-4F-D16.0-G 16.0 16 45 100 4 B ○
GM-4F-D18.0-G 18.0 18 45 100 4 B ○
GM-4F-D20.0-G 20.0 20 45 100 4 B ○
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303
Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG
Code key B252,B254 Cutting data B354-B361 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 341
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
Solid Carbide end mills · Vollhartmetallschaftfräser
GM-4F-G
4-flute flattened end mills with straight shank
4-Schneiden Eckfräser mit Zylinderschaft
A
D
d
10° H
L
B
D
d
H
Coated
30 o D≤12 0~-0.020 L
TiAIN D 12<D 0~-0.030
Dimension(mm) Grade
Type Abmessungen Teeth Geometry
B
Typ
Zähne Ausführung Sorte
D d H L Z KMG 303
GM-4F-D1.0S-G 1.0 4 3 50 4 A ○
GM-4F-D1.5S-G 1.5 4 4 50 4 A ○
GM-4F-D2.0S-G 2.0 4 6 50 4 A ○
GM-4F-D2.5S-G 2.5 4 8 50 4 A ○
GM-4F-D3.0S-G 3.0 4 8 50 4 A ○
GM-4F-D4.0S-G 4.0 4 11 50 4 B ○
GM-4F-D1.0-G 1.0 6 3 50 4 A ●
Vollhartmetallschaftfräser
GM-4F-D1.5-G ○
Solid Carbide end mills
1.5 6 4 50 4 A
GM-4F-D2.0-G 2.0 6 6 50 4 A ○
GM-4F-D2.5-G 2.5 6 8 50 4 A ○
GM-4F-D3.0-G 3.0 6 8 50 4 A ○
GM-4F-D3.5-G 3.5 6 10 50 4 A ○
GM-4F-D4.0-G 4.0 6 11 50 4 A ○
GM-4F-D4.5-G 4.5 6 11 50 4 A ○
GM-4F-D5.0-G 5.0 6 13 50 4 A ○
GM-4F-D5.5-G 5.5 6 16 50 4 A ○
GM-4F-D6.0-G 6.0 6 16 50 4 B ○
GM-4F-D7.0-G 7.0 8 20 60 4 A ○
GM-4F-D8.0-G 8.0 8 20 60 4 B ○
GM-4F-D9.0-G 9.0 10 22 75 4 A ○
GM-4F-D10.0-G 10.0 10 25 75 4 B ○
GM-4F-D11.0-G 11.0 12 26 75 4 A ○
GM-4F-D12.0-G 12.0 12 30 75 4 B ○
GM-4F-D14.0-G 14.0 14 32 75 4 B ○
GM-4F-D16.0-G 16.0 16 45 100 4 B ○
GM-4F-D18.0-G 18.0 18 45 100 4 B ○
GM-4F-D20.0-G 20.0 20 45 100 4 B ○
= Very suitable · Sehr empfohlen
Material Overview · Material Übersicht = Suitable · Empfohlen
Workpiece material
KMG303
Werkstückstoff
Quenched and
Hardened steel · Cast iron,
Carbon tempered steel · Gehärteter Stahl Stainless Heat resist
Alloy steel Nodular Copper Aluminum Titanium
steel Legierter Vergüteter Stahl steel · cast iron alloy
Kohlenstoff Rostfreier alloy alloy alloy warmfeste
Stahl Grauguss Kupfer Leg Alu Leg Titan Leg
Stahl Stahl Leg
~40HRC ~50HRC ~55HRC ~68HRC GGG
Code key B252,B254 Cutting data B354-B361 Graphics identification & application B253-B255 Order form for non-standard products B534-B535
B 341
ISO Kennzeichen Schnittdaten Graphische Werkzeug- & Anwendungsbeschr. Bestellformular für Sonderwerkzeuge
