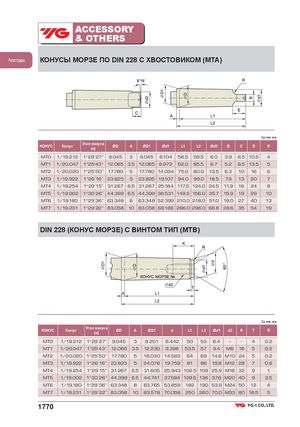

ACCESSORY & OTHERS Аксессуары КОНУСЫ МОРЗЕ ПО DIN 228 С ХВОСТОВИКОМ (МТА) Ед.изм.:мм КОНУС Конус Угол конуса(α) ØD A ØD1 Ød1 L1 L2 Ød2 B C E R MT0 1/19.212 1°29´27˝ 9.045 3 9.045 6.104 56.5 59.5 6.0 3.9 6.5 10.5 4 MT1 1/20.047 1°25´43˝ 12.065 3.5 12.065 8.972 62.0 65.5 8.7 5.2 8.5 13.5 5 MT2 1/20.020 1°25´50˝ 17.780 5 17.780 14.034 75.0 80.0 13.5 6.3 10 16 6 MT3 1/19.922 1°26´16˝ 23.825 5 23.825 19.107 94.0 99.0 18.5 7.9 13 20 7 MT4 1/19.254 1°29´15˝ 31.267 6.5 31.267 25.164 117.5 124.0 24.5 11.9 16 24 8 MT5 1/19.002 1°30´26˝ 44.399 6.5 44.399 36.531 149.5 156.0 35.7 15.9 19 29 10 MT6 1/19.180 1°29´36˝ 63.348 8 63.348 52.399 210.0 218.0 51.0 19.0 27 40 13 MT7 1/19.231 1°29´22˝ 83.058 10 83.058 68.186 286.0 296.0 66.8 28.6 35 54 19 DIN 228 (КОНУС МОРЗЕ) С ВИНТОМ ТИП (MTB) Ед.изм.:мм КОНУС Конус Угол конуса(α) ØD A ØD1 d L1 L2 Ød1 d2 K T R MT0 1/19.212 1°29´27˝ 9.045 3 9.201 6.442 50 53 6.4 4 0.2 MT1 1/20.047 1°25´43˝ 12.065 3.5 12.230 9.396 53.5 57 9.4 M6 16 5 0.2 MT2 1/20.020 1°25´50˝ 17.780 5 18.030 14.583 64 69 14.6 M10 24 5 0.2 MT3 1/19.922 1°26´16˝ 23.825 5 24.076 19.759 81 86 19.8 M12 28 7 0.6 MT4 1/19.254 1°29´15˝ 31.267 6.5 31.605 25.943 102.5 109 25.9 M16 32 9 1 MT5 1/19.002 1°30´26˝ 44.399 6.5 44.741 37.584 129.5 136 37.6 M20 40 9 2.5 MT6 1/19.180 1°29´36˝ 63.348 8 63.765 53.859 182 190 53.9 M24 50 12 4 MT7 1/19.231 1°29´22˝ 83.058 10 83.578 70.058 250 260 70.0 M33 80 18.5 5 1770
