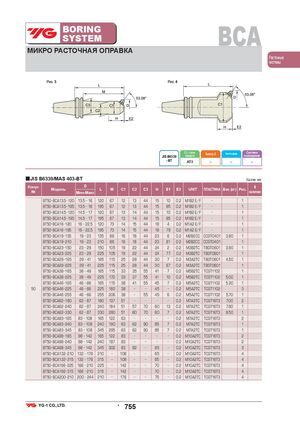

BORINGSYSTEM BCA МИКРО РАСТОЧНАЯ ОПРАВКА Расточные системы Рис. 3 Рис. 4 Ст. точн.JIS B6339конусаБалансир. G Частота вращ. Системаохлаждения - BT AT3 – – – ■JIS B6339/MAS 403-BT Ед.изм.:мм Конус№ Модель D LМин-МаксM C1 C2 C3 H E1 E2 UNIT ПЛАСТИНА Вес (кг) Рис. Вналичии BT50 BCA13.5 120 13.5 16 120 67 12 13 44 15 10 0.2 M1B2 E/F 1 BT50 BCA13.5 195 13.5 16 195 67 12 13 44 15 85 0.2 M1B2 E/F 1 BT50 BCA14.5 120 14.5 17 120 67 13 14 44 15 10 0.2 M1B2 E/F 1 BT50 BCA14.5 195 14.5 17 195 67 13 14 44 15 85 0.2 M1B2 E/F 1 BT50 BCA16 120 16 22.5 120 73 14 15 44 18 4 0.2 M1A2 E/F 1 BT50 BCA16 195 16 22.5 195 73 14 15 44 18 79 0.2 M1A2 E/F 1 BT50 BCA19 135 19 23 135 86 16 18 44 23 6 0.2 M2B2CC CCGT0401 3.80 1 BT50 BCA19 210 19 23 210 86 16 18 44 23 81 0.2 M2B2CC CCGT0401 1 BT50 BCA23 150 23 29 150 105 19 22 44 24 2 0.2 M3B2TC TBGT0601 3.90 1 BT50 BCA23 225 23 29 225 105 19 22 44 24 77 0.2 M3B2TC TBGT0601 1 BT50 BCA29 165 29 41 165 115 25 28 44 30 7 0.2 M3A2TC TBGT0601 4.50 1 BT50 BCA29 225 29 41 225 115 25 28 44 30 67 0.2 M3A2TC TBGT0601 1 BT50 BCA38 165 38 49 165 115 33 35 55 41 7 0.2 M5B2TC TCGT1102 1 BT50 BCA38 225 38 49 225 172 33 37 55 41 10 0.2 M5B2TC TCGT1102 5.00 1 BT50 BCA46 165 46 66 165 115 38 41 55 45 7 0.2 M5A2TC TCGT1102 5.20 1 50 BT50 BCA46 225 46 66 225 182 38 45 0.2 M5A2TC TCGT1102 3 BT50 BCA46 255 46 66 255 206 38 55 45 6 0.2 M5A2TC TCGT1102 5.70 1 BT50 BCA62 180 62 87 180 137 51 0.2 M7A2TC TCGT16T3 7.00 2 BT50 BCA62 240 62 87 240 184 51 57 70 60 13 0.2 M7A2TC TCGT16T3 7.60 1 BT50 BCA62 330 62 87 330 280 51 60 70 60 7 0.2 M7A2TC TCGT16T3 9.50 1 BT50 BCA83 165 83 108 165 122 63 0.2 M7A2TC TCGT16T3 2 BT50 BCA83 240 83 108 240 190 63 62 90 95 7 0.2 M7A2TC TCGT16T3 1 BT50 BCA83 345 83 108 345 295 63 62 90 95 7 0.2 M7A2TC TCGT16T3 1 BT50 BCA98 165 98 142 165 122 83 0.2 M10A2TC TCGT16T3 2 BT50 BCA98 240 98 142 240 197 83 0.2 M10A2TC TCGT16T3 2 BT50 BCA98 345 98 142 345 302 83 92 85 0.2 M10A2TC TCGT16T3 3 BT50 BCA132 210 132 176 210 108 65 0.2 M10A2TC TCGT16T3 4 BT50 BCA132 315 132 176 315 108 65 0.2 M10A2TC TCGT16T3 4 BT50 BCA166 225 166 210 225 142 70 0.2 M10A2TC TCGT16T3 4 BT50 BCA166 315 166 210 315 142 70 0.2 M10A2TC TCGT16T3 4 BT50 BCA200 210 200 244 210 176 75 0.2 M10A2TC TCGT16T3 4 • 755
