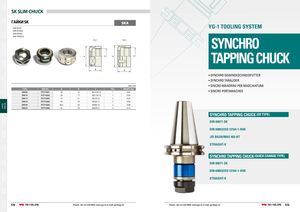

A C A C & OthersSystem& Other Tool HoldersArborChuckER ChuckTapping ChuckChuckArborChuckArbor& Side Lock ArborChuckHolderChuck AccessoryBoringNC Drill ChuckFace MillTappingTappingSynchroSK SlimMorse TaperPower MillingShell MillEnd Mill HolderER ColletShrink FitHydraulic SK SLIM CHUCK ГАЙКИ SK SKA SKN NUSS YG-1 TOOLING SYSTEM SKN ÉCROU SKN DADO SKN TUERCA FIG.1 FIG.2 SYNCHRO TAPPING CHUCK B B • SYNCHRO GEWINDESCHNEIDFUTTER • SYNCHRO TARAUDER Unit : mm • SINCRO MANDRINI PER MASCHIATURA TYPE EDP No. A B C FIG. WEIGHT (Kg) SKN06 P2773581 20 15 M15.5X1.0 1 0.02 • SINCRO PORTAMACHOS SKN10 P2773582 28 17 M21.5X1.0 1 0.04 SKN13 P2773583 33 21 M27X1.0 2 0.05 SKN16 P2773584 40 24 M32X1.5 2 0.06 SKN20 P2773585 48.5 24 M40X1.0 2 0.08 SKN25 P2773586 55 30 M42X1.5 2 0.10 SYNCHRO TAPPING CHUCK (ER TYPE) DIN 69871-SK DIN 69893/ISO 12164-1-HSK JIS B6339/MAS 403-BT STRAIGHT-K SYNCHRO TAPPING CHUCK (QUICK CHANGE TYPE) DIN 69871-SK DIN 69893/ISO 12164-1-HSK STRAIGHT-K 172 Phone: +82-32-526-0909, www.yg1.kr, E-mail: yg1@yg1.kr Phone: +82-32-526-0909, www.yg1.kr, E-mail: yg1@yg1.kr 173
