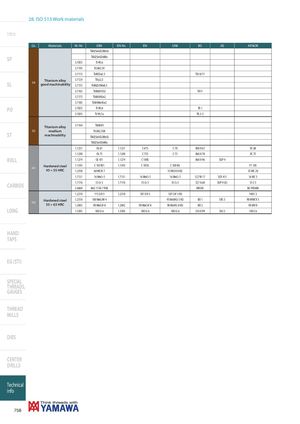

| Gr. Materials | W.-Nr | DIN TiAl2Sn4Zr2MoSi | EN-Nr. | EN | UNI | BS | JIS | AFNOR |
| TiAl2Sn4Zr6Mo | ||||||||
| 3.7055 | Ti 99,6 | |||||||
| 3.7195 | Ti3Al2.5V | |||||||
| 3.7115 | TiAl5Sn2.5 | TA14/17 | ||||||
| Titanium alloy | 3.7124 | TiCu2,5 | ||||||
| S4 good machinability | 3.7155 | TiAl6Zr5Mo0,5 | ||||||
| 3.7165 | TiAl6V4 ELI | TA11 | ||||||
| 3.7175 | TiAl6V6Sn2 | |||||||
| 3.7185 | TiAl4Mo4Sn2 | |||||||
| 3.7025 | Ti 99,8 | TA 1 | ||||||
| 3.7035 | Ti 99,7a | TA 2-5 | ||||||
| Titanium alloy | 3.7164 | TiAl6V4 | ||||||
| S5 medium | Ti5Al2.5SN | |||||||
| machinability | TiAl2Sn4Zr2MoSi | |||||||
| TiAl2Sn4Zr6Mo | ||||||||
| 1.1231 | Ck 67 | 1.1231 | C 67S | C 70 | 060 A 67 | XC 68 | ||
| 1.1248 | Ck 75 | 1.1248 | C 75S | C 75 | 060 A 78 | XC 75 | ||
| 1.1274 | Ck 101 | 1.1274 | C 100S | 060 A 96 | SUP 4 | |||
| H Hardened steel | 1.1545 | C 105 W1 | 1.1545 | C 105U | C 100 KU | Y1 105 | ||
| 1 45 ÷ 55 HRC | 1.2550 | 60 WCrV 7 | 55 WCrV 8 KU | 55 WC 20 | ||||
| 1.7131 | 16 MnCr 5 | 1.7131 | 16 MnCr 5 | 16 MnCr 5 | 527 M 17 | SCR 415 | 16 MC 5 | |
| 1.7176 | 55 Cr 3 | 1.7176 | 55 Cr 3 | 55 Cr 3 | 527 A 60 | SUP 9 (A) | 55 C 3 | |
| 2.4669 | NiCr 15 Fe 7 TiAl | HR505 | NC19FeNB | |||||
| 1.2210 | 115 CrV 3 | 1.2210 | 107 CrV 3 | 107 CrV 3 KU | 100 C 3 | |||
| H2 Hardened steel | 1.2510 | 100 MnCrW 4 | 95 MnWCr 5 KU | BO 1 | SKS 3 | 90 MWCV 5 | ||
| 55 ÷ 63 HRC | 1.2842 | 90 MnCrV 8 | 1.2842 | 90 MnCrV 8 | 90 MnVCr 8 KU | BO 2 | 90 MV 8 | |
| 1.3505 | 100 Cr 6 | 1.3505 | 100 Cr 6 | 100 Cr 6 | 534 A 99 | SUJ 2 | 100 C 6 |
