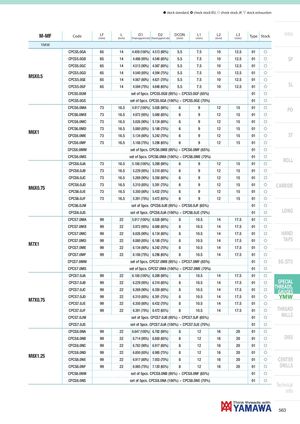

Общий каталог Yamawa 2021 - страница 562
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M-MF | Code | LF ( mm ) | L ( mm ) | D1 (Thread engagement ratio) | D2 (Thread engagement ratio) | DCON ( mm ) | L1 ( mm ) | L2 ( mm ) | L3 ( mm ) | Type | Stock | Intro |
| YMW | ||||||||||||
| CPCS5.0GA | 65 | 14 | 4.459 (100%) | 4.513 (90%) | 5.5 | 7.5 | 10 | 12.5 | 01 | f | ||
| CPCS5.0GB | 65 | 14 | 4.486 (95%) | 4.540 (85%) | 5.5 | 7.5 | 10 | 12.5 | 01 | f | SP | |
| CPCS5.0GC | 65 | 14 | 4.513 (90%) | 4.567 (80%) | 5.5 | 7.5 | 10 | 12.5 | 01 | f | ||
| CPCS5.0GD | 65 | 14 | 4.540 (85%) | 4.594 (75%) | 5.5 | 7.5 | 10 | 12.5 | 01 | f | ||
| M5X0.5 | CPCS5.0GE | 65 | 14 | 4.567 (80%) | 4.621 (70%) | 5.5 | 7.5 | 10 | 12.5 | 01 | f | |
| CPCS5.0GF | 65 | 14 | 4.594 (75%) | 4.648 (65%) | 5.5 | 7.5 | 10 | 12.5 | 01 | f | SL | |
| CPCS5.0GM | set of 5pcs. | CPCS5.0GB (95 | %) ~ CPC | S5.0GF (65%) | 01 | f | ||||||
| CPCS5.0GS | set of 5pcs. C | PCS5.0GA (10 | 0%) ~ CPC | S5.0GE (70%) | 01 | f | ||||||
| CPCS6.0MA | 73 | 16.5 | 4.917 (100%) | 5.026 (90%) | 6 | 9 | 12 | 15 | 01 | f | PO | |
| CPCS6.0MB | 73 | 16.5 | 4.972 (95%) | 5.080 (85%) | 6 | 9 | 12 | 15 | 01 | f | ||
| CPCS6.0MC | 73 | 16.5 | 5.026 (90%) | 5.134 (80%) | 6 | 9 | 12 | 15 | 01 | f | ||
| CPCS6.0MD | 73 | 16.5 | 5.080 (85%) | 5.188 (75%) | 6 | 9 | 12 | 15 | 01 | f | ||
| M6X1 | CPCS6.0ME | 73 | 16.5 | 5.134 (80%) | 5.242 (70%) | 6 | 9 | 12 | 15 | 01 | f | ST |
| CPCS6.0MF | 73 | 16.5 | 5.188 (75%) | 5.296 (65%) | 6 | 9 | 12 | 15 | 01 | f | ||
| CPCS6.0MM | set of 5pcs. C | PCS6.0MB (95 | %) ~ CPC | S6.0MF (65%) | 01 | f | ||||||
| CPCS6.0MS | set of 5pcs. C | PCS6.0MA (10 | 0%) ~ CPC | S6.0ME (70%) | 01 | f | ||||||
| CPCS6.0JA | 73 | 16.5 | 5.188 (100%) | 5.269 (90%) | 6 | 9 | 12 | 15 | 01 | f | ROLL | |
| CPCS6.0JB | 73 | 16.5 | 5.229 (95%) | 5.310 (85%) | 6 | 9 | 12 | 15 | 01 | f | ||
| CPCS6.0JC | 73 | 16.5 | 5.269 (90%) | 5.350 (80%) | 6 | 9 | 12 | 15 | 01 | f | ||
| CPCS6.0JD | 73 | 16.5 | 5.310 (85%) | 5.391 (75%) | 6 | 9 | 12 | 15 | 01 | f | CARBIDE | |
| M6X0.75 | CPCS6.0JE | 73 | 16.5 | 5.350 (80%) | 5.432 (70%) | 6 | 9 | 12 | 15 | 01 | f | |
| CPCS6.0JF | 73 | 16.5 | 5.391 (75%) | 5.472 (65%) | 6 | 9 | 12 | 15 | 01 | f | ||
| CPCS6.0JM | set of 5pcs. | CPCS6.0JB (95 | %) ~ CPC | S6.0JF (65%) | 01 | f | ||||||
| LONG | ||||||||||||
| CPCS6.0JS | set of 5pcs. | PCS6.0JA (10 | %) ~ CP | S6.0JE (70%) | 01 | f | ||||||
| CPCS7.0MA | 99 | 22 | 5.917 (100%) | 6.026 (90%) | 8 | 10.5 | 14 | 17.5 | 01 | f | ||
| CPCS7.0MB | 99 | 22 | 5.972 (95%) | 6.080 (85%) | 8 | 10.5 | 14 | 17.5 | 01 | f | ||
| CPCS7.0MC | 99 | 22 | 6.026 (90%) | 6.134 (80%) | 8 | 10.5 | 14 | 17.5 | 01 | f | HAND | |
| CPCS7.0MD | 99 | 22 | 6.080 (85%) | 6.188 (75%) | 8 | 10.5 | 14 | 17.5 | 01 | f | TAPS | |
| M7X1 | CPCS7.0ME | 99 | 22 | 6.134 (80%) | 6.242 (70%) | 8 | 10.5 | 14 | 17.5 | 01 | f | |
| CPCS7.0MF | 99 | 22 | 6.188 (75%) | 6.296 (65%) | 8 | 10.5 | 14 | 17.5 | 01 | f | ||
| CPCS7.0MM | set of 5pcs. C | PCS7.0MB (95 | %) ~ CPC | S7.0MF (65%) | 01 | f | EG (STI) | |||||
| CPCS7.0MS | set of 5pcs. C | PCS7.0MA (10 | 0%) ~ CPC | S7.0ME (70%) | 01 | f | ||||||
| CPCS7.0JA | 99 | 22 | 6.188 (100%) | 6.269 (90%) | 8 | 10.5 | 14 | 17.5 | 01 | f | ||
| CPCS7.0JB | 99 | 22 | 6.229 (95%) | 6.310 (85%) | 8 | 10.5 | 14 | 17.5 | 01 | f | SPECIAL | |
| CPCS7.0JC | 99 | 22 | 6.269 (90%) | 6.350 (80%) | 8 | 10.5 | 14 | 17.5 | 01 | f | THREADS, GAUGES | |
| CPCS7.0JD | 99 | 22 | 6.310 (85%) | 6.391 (75%) | 8 | 10.5 | 14 | 17.5 | 01 | f | YMW | |
| M7X0.75 | CPCS7.0JE | 99 | 22 | 6.350 (80%) | 6.432 (70%) | 8 | 10.5 | 14 | 17.5 | 01 | f | |
| CPCS7.0JF | 99 | 22 | 6.391 (75%) | 6.472 (65%) | 8 | 10.5 | 14 | 17.5 | 01 | f | THREAD | |
| CPCS7.0JM | set of 5pcs. | CPCS7.0JB (95 | %) ~ CPC | S7.0JF (65%) | 01 | f | MILLS | |||||
| CPCS7.0JS | set of 5pcs. C | PCS7.0JA (10 | 0%) ~ CPC | S7.0JE (70%) | 01 | f | ||||||
| CPCS8.0NA | 99 | 22 | 6.647 (100%) | 6.782 (90%) | 8 | 12 | 16 | 20 | 01 | f | ||
| CPCS8.0NB | 99 | 22 | 6.714 (95%) | 6.850 (85%) | 8 | 12 | 16 | 20 | 01 | f | DIES | |
| CPCS8.0NC | 99 | 22 | 6.782 (90%) | 6.917 (80%) | 8 | 12 | 16 | 20 | 01 | f | ||
| CPCS8.0ND | 99 | 22 | 6.850 (85%) | 6.985 (75%) | 8 | 12 | 16 | 20 | 01 | f | ||
| M8X1.25 | CPCS8.0NE | 99 | 22 | 6.917 (80%) | 7.053 (70%) | 8 | 12 | 16 | 20 | 01 | f | CENTER |
| CPCS8.0NF | 99 | 22 | 6.985 (75%) | 7.120 (65%) | 8 | 12 | 16 | 20 | 01 | f | DRILLS | |
| CPCS8.0NM | set of 5pcs. | CPCS8.0NB (95 | %) ~ CPC | S8.0NF (65%) | 01 | f | ||||||
| CPCS8.0NS | set of 5pcs. C | PCS8.0NA (10 | 0%) ~ CPC | S8.0NE (70%) | 01 | f |
