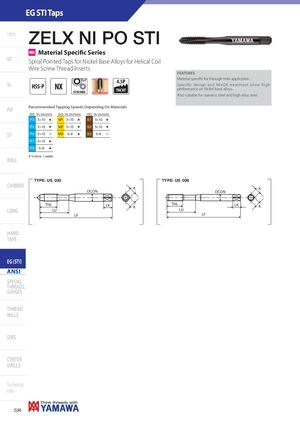

ZELX NI PO STI
MS Material Specifi c Series
SP Spiral Pointed Taps for Nickel Base Alloys for Helical Coil
Wire Screw Thread Inserts
4.5P
SL HSS-P NX
THCHT SYNCHRO
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P3 | 5÷15 | H | M1 5÷15 | H | S1 | 5÷10 | H | ||
| P4 | 5÷15 | H | M2 5÷15 | H | S2 | 5÷10 | H | ||
| ST | P5 | 5÷10 | I | M3 | 4÷8 | H | S3 | 3÷6 | I |
| P7 | 5÷15 | H | |||||||
| P8 | 4÷8 | H |
H 1st choice I suitable ROLL
FEATURES Material specifi c for through hole application. Specific design and NI+OX treatment allow high performance on Nickel base alloys. Also suitable for stainless steel and high alloy steel.
ANSI-ZELX NI PO STI
TYPE: US_030 TYPE: US_006
CARBIDE
K K DCON DCON
| THL | LK | THL | LK | ||
| K | K |
LONG LU LU
LF LF
HAND
TAPS
EG (STI)
ANSI
SPECIAL
THREADS,
