Каталоги Yamawa твердосплавные метчики для закаленной стали

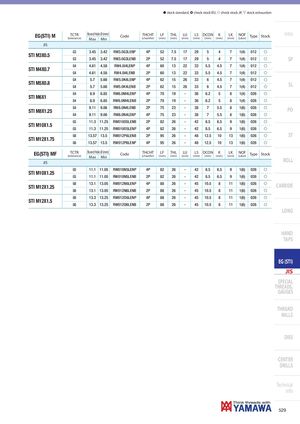

| EG(STI) M | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | Intro |
| JIS | ||||||||||||||||
| STI M3X05 | G3 | 3.45 | 3.42 | RW3.0G3LENP | 4P | 52 | 7.5 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | |
| . | G3 | 3.45 | 3.42 | RW3.0G3LENB | 2P | 52 | 7.5 | 17 | 29 | 5 | 4 | 7 | 1(4) | 012 | f | SP |
| STI M4X07 | G4 | 4.61 | 4.58 | RW4.0I4LENP | 4P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | |
| . | G4 | 4.61 | 4.58 | RW4.0I4LENB | 2P | 60 | 13 | 22 | 33 | 5.5 | 4.5 | 7 | 1(4) | 012 | f | |
| G4 | 5.7 | 5.66 | RW5.0K4LENP | 4P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | ||
| STI M5X0.8 | G4 | 5.7 | 5.66 | RW5.0K4LENB | 2P | 62 | 15 | 26 | 33 | 6 | 4.5 | 7 | 1(4) | 012 | f | SL |
| STI M6X1 | G4 | 6.9 | 6.85 | RW6.0M4LENP | 4P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(4) | 026 | f | |
| G4 | 6.9 | 6.85 | RW6.0M4LENB | 2P | 70 | 19 | - | 36 | 6.2 | 5 | 8 | 1(4) | 026 | f | ||
| STI M8X125 | G4 | 9.11 | 9.06 | RW8.0N4LENB | 2P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 1(6) | 026 | f | PO |
| . | G4 | 9.11 | 9.06 | RW8.0N4LENP | 4P | 75 | 23 | - | 38 | 7 | 5.5 | 8 | 1(6) | 026 | f | |
| STI MX | G5 | 11.3 | 11.25 | RW010O5LENB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | |
| 101.5 | G5 | 11.3 | 11.25 | RW010O5LENP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | |
| STI M12X175 | G6 | 13.57 | 13.5 | RW012P6LENB | 2P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 1(6) | 026 | f | ST |
| . | G6 | 13.57 | 13.5 | RW012P6LENP | 4P | 95 | 26 | - | 48 | 12.5 | 10 | 13 | 1(6) | 026 | f | |
| EG(STI) MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | |
| JIS | ROLL | |||||||||||||||
| STI M1X12 | G5 | 11.1 | 11.05 | RW010N5LENP | 4P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | |
| 0.5 | G5 | 11.1 | 11.05 | RW010N5LENB | 2P | 82 | 26 | - | 42 | 8.5 | 6.5 | 9 | 1(6) | 026 | f | |
| G6 | 13.1 | 13.05 | RW012N6LENP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f | CARBIDE | |
| STI M12X1.25 | G6 | 13.1 | 13.05 | RW012N6LENB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f | |
| G6 | 13.3 | 13.25 | RW012O6LENP | 4P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f | ||
| STI M12X1.5 | G6 | 13.3 | 13.25 | RW012O6LENB | 2P | 88 | 26 | - | 45 | 10.5 | 8 | 11 | 1(6) | 026 | f |
LONG
HAND
TAPS
EG (STI)
JIS
SPECIAL
THREADS,
