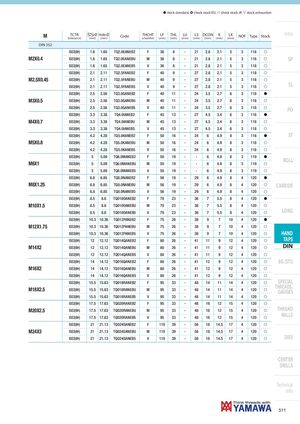

Общий каталог Yamawa 2021 - страница 510
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 352 | ||||||||||||||||
| ISO2(6H) | 1.6 | 1.65 | TQ2.0EANEB2 | F | 36 | 8 | - | 21 | 2.8 | 2.1 | 5 | 3 | 118 | f | ||
| M2X0.4 | ISO2(6H) | 1.6 | 1.65 | TQ2.0EANEBU | M | 36 | 8 | - | 21 | 2.8 | 2.1 | 5 | 3 | 118 | f | SP |
| ISO2(6H) | 1.6 | 1.65 | TQ2.0EANEB5 | V | 36 | 8 | - | 21 | 2.8 | 2.1 | 5 | 3 | 118 | f | ||
| ISO2(6H) | 2.1 | 2.11 | TQ2.5FANEB2 | F | 40 | 9 | - | 27 | 2.8 | 2.1 | 5 | 3 | 118 | f | ||
| M2.5X0.45 | ISO2(6H) | 2.1 | 2.11 | TQ2.5FANEBU | M | 40 | 9 | - | 27 | 2.8 | 2.1 | 5 | 3 | 118 | f | |
| ISO2(6H) | 2.1 | 2.11 | TQ2.5FANEB5 | V | 40 | 9 | - | 27 | 2.8 | 2.1 | 5 | 3 | 118 | f | SL | |
| ISO2(6H) | 2.5 | 2.56 | TQ3.0GANEB2 | F | 40 | 11 | - | 24 | 3.5 | 2.7 | 6 | 3 | 118 | h | ||
| M3X0.5 | ISO2(6H) | 2.5 | 2.56 | TQ3.0GANEBU | M | 40 | 11 | - | 24 | 3.5 | 2.7 | 6 | 3 | 118 | f | |
| ISO2(6H) | 2.5 | 2.56 | TQ3.0GANEB5 | V | 40 | 11 | - | 24 | 3.5 | 2.7 | 6 | 3 | 118 | f | PO | |
| ISO2(6H) | 3.3 | 3.38 | TQ4.0IANEB2 | F | 45 | 13 | - | 27 | 4.5 | 3.4 | 6 | 3 | 118 | h | ||
| M4X0.7 | ISO2(6H) | 3.3 | 3.38 | TQ4.0IANEBU | M | 45 | 13 | - | 27 | 4.5 | 3.4 | 6 | 3 | 118 | f | |
| ISO2(6H) | 3.3 | 3.38 | TQ4.0IANEB5 | V | 45 | 13 | - | 27 | 4.5 | 3.4 | 6 | 3 | 118 | f | ||
| ISO2(6H) | 4.2 | 4.28 | TQ5.0KANEB2 | F | 50 | 16 | - | 24 | 6 | 4.9 | 8 | 3 | 118 | h | ST | |
| M5X0.8 | ISO2(6H) | 4.2 | 4.28 | TQ5.0KANEBU | M | 50 | 16 | - | 24 | 6 | 4.9 | 8 | 3 | 118 | f | |
| ISO2(6H) | 4.2 | 4.28 | TQ5.0KANEB5 | V | 50 | 16 | - | 24 | 6 | 4.9 | 8 | 3 | 118 | f | ||
| ISO2(6H) | 5 | 5.09 | TQ6.0MANEB2 | F | 50 | 19 | - | - | 6 | 4.9 | 8 | 3 | 119 | h | ROLL | |
| M6X1 | ISO2(6H) | 5 | 5.09 | TQ6.0MANEBU | M | 50 | 19 | - | - | 6 | 4.9 | 8 | 3 | 119 | f | |
| ISO2(6H) | 5 | 5.09 | TQ6.0MANEB5 | V | 50 | 19 | - | - | 6 | 4.9 | 8 | 3 | 119 | f | ||
| ISO2(6H) | 6.8 | 6.85 | TQ8.0NANEB2 | F | 56 | 19 | - | 29 | 6 | 4.9 | 8 | 4 | 120 | h | ||
| M8X1.25 | ISO2(6H) | 6.8 | 6.85 | TQ8.0NANEBU | M | 56 | 19 | - | 29 | 6 | 4.9 | 8 | 4 | 120 | f | CARBIDE |
| ISO2(6H) | 6.8 | 6.85 | TQ8.0NANEB5 | V | 56 | 19 | - | 29 | 6 | 4.9 | 8 | 4 | 120 | f | ||
| ISO2(6H) | 8.5 | 8.6 | TQ010OANEB2 | F | 70 | 23 | - | 36 | 7 | 5.5 | 8 | 4 | 120 | h | ||
| M10X1.5 | ISO2(6H) | 8.5 | 8.6 | TQ010OANEBU | M | 70 | 23 | - | 36 | 7 | 5.5 | 8 | 4 | 120 | f | |
| ISO2(6H) | 8.5 | 8.6 | TQ010OANEB5 | V | 70 | 23 | - | 36 | 7 | 5.5 | 8 | 4 | 120 | f | LONG | |
| ISO2(6H) | 10.3 | 10.36 | TQ012PANEB2 | F | 75 | 26 | - | 38 | 9 | 7 | 10 | 4 | 120 | h | ||
| M12X1.75 | ISO2(6H) | 10.3 | 10.36 | TQ012PANEBU | M | 75 | 26 | - | 38 | 9 | 7 | 10 | 4 | 120 | f | |
| ISO2(6H) | 10.3 | 10.36 | TQ012PANEB5 | V | 75 | 26 | - | 38 | 9 | 7 | 10 | 4 | 120 | f | HAND | |
| ISO2(6H) | 12 | 12.12 | TQ014QANEB2 | F | 80 | 26 | - | 41 | 11 | 9 | 12 | 4 | 120 | f | TAPS | |
| M14X2 | ISO2(6H) | 12 | 12.12 | TQ014QANEBU | M | 80 | 26 | - | 41 | 11 | 9 | 12 | 4 | 120 | f | DIN |
| ISO2(6H) | 12 | 12.12 | TQ014QANEB5 | V | 80 | 26 | - | 41 | 11 | 9 | 12 | 4 | 120 | f | ||
| ISO2(6H) | 14 | 14.12 | TQ016QANEB2 | F | 80 | 26 | - | 41 | 12 | 9 | 12 | 4 | 120 | f | EG (STI) | |
| M16X2 | ISO2(6H) | 14 | 14.12 | TQ016QANEBU | M | 80 | 26 | - | 41 | 12 | 9 | 12 | 4 | 120 | f | |
| ISO2(6H) | 14 | 14.12 | TQ016QANEB5 | V | 80 | 26 | - | 41 | 12 | 9 | 12 | 4 | 120 | f | ||
| ISO2(6H) | 15.5 | 15.63 | TQ018RANEB2 | F | 95 | 33 | - | 48 | 14 | 11 | 14 | 4 | 120 | f | SPECIAL | |
| M18X2.5 | ISO2(6H) | 15.5 | 15.63 | TQ018RANEBU | M | 95 | 33 | - | 48 | 14 | 11 | 14 | 4 | 120 | f | THREADS, GAUGES |
| ISO2(6H) | 15.5 | 15.63 | TQ018RANEB5 | V | 95 | 33 | - | 48 | 14 | 11 | 14 | 4 | 120 | f | ||
| ISO26H | 175 | 1763 | TQ020RANEB2 | F | 95 | 33 | 48 | 16 | 12 | 15 | 4 | 120 | f | |||
| () | . | . | - | |||||||||||||
| M20X2.5 | ISO2(6H) | 17.5 | 17.63 | TQ020RANEBU | M | 95 | 33 | - | 48 | 16 | 12 | 15 | 4 | 120 | f | THREAD |
| ISO2(6H) | 17.5 | 17.63 | TQ020RANEB5 | V | 95 | 33 | - | 48 | 16 | 12 | 15 | 4 | 120 | f | MILLS | |
| ISO2(6H) | 21 | 21.13 | TQ024SANEB2 | F | 110 | 39 | - | 56 | 18 | 14.5 | 17 | 4 | 120 | f | ||
| M24X3 | ISO2(6H) | 21 | 21.13 | TQ024SANEBU | M | 110 | 39 | - | 56 | 18 | 14.5 | 17 | 4 | 120 | f | |
| ISO2(6H) | 21 | 21.13 | TQ024SANEB5 | V | 110 | 39 | - | 56 | 18 | 14.5 | 17 | 4 | 120 | f | DIES |
