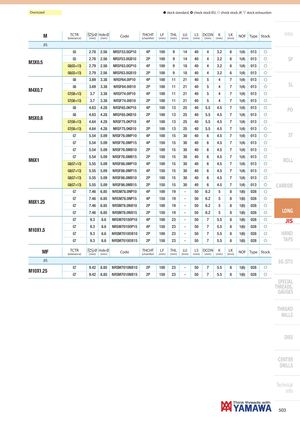

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| G5 | 2.78 | 2.56 | NRSF53.0GP10 | 4P | 100 | 9 | 14 | 40 | 4 | 3.2 | 6 | 1(4) | 013 | f | ||
| M3X05 | G5 | 2.78 | 2.56 | NRSF53.0GB10 | 2P | 100 | 9 | 14 | 40 | 4 | 3.2 | 6 | 1(4) | 013 | f | SP |
| . | G6(G5+13) | 2.79 | 2.56 | NRSF63.0GP10 | 4P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 1(4) | 013 | f | |
| G6(G5+13) | 2.79 | 2.56 | NRSF63.0GB10 | 2P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 1(4) | 013 | f | ||
| G6 | 3.69 | 3.38 | NRSF64.0IP10 | 4P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 1(4) | 013 | f | ||
| M4X07 | G6 | 3.69 | 3.38 | NRSF64.0IB10 | 2P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 1(4) | 013 | f | SL |
| . | G7(G6+13) | 3.7 | 3.38 | NRSF74.0IP10 | 4P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 1(4) | 013 | f | |
| G7(G6+13) | 3.7 | 3.38 | NRSF74.0IB10 | 2P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 1(4) | 013 | f | ||
| G6 | 4.63 | 4.28 | NRSF65.0KP10 | 4P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 1(4) | 013 | f | PO | |
| G6 | 4.63 | 4.28 | NRSF65.0KB10 | 2P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 1(4) | 013 | f | ||
| M5X0.8 | G7(G6+13) | 4.64 | 4.28 | NRSF75.0KP10 | 4P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 1(4) | 013 | f | |
| G7(G6+13) | 4.64 | 4.28 | NRSF75.0KB10 | 2P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 1(4) | 013 | f | ||
| G7 | 5.54 | 5.09 | NRSF76.0MP10 | 4P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ST | |
| G7 | 5.54 | 5.09 | NRSF76.0MP15 | 4P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ||
| G7 | 5.54 | 5.09 | NRSF76.0MB10 | 2P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ||
| M6X1 | G7 | 5.54 | 5.09 | NRSF76.0MB15 | 2P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ROLL |
| G8(G7+13) | 5.55 | 5.09 | NRSF86.0MP10 | 4P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ||
| G8(G7+13) | 5.55 | 5.09 | NRSF86.0MP15 | 4P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ||
| G8(G7+13) | 5.55 | 5.09 | NRSF86.0MB10 | 2P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | ||
| G8(G7+13) | 5.55 | 5.09 | NRSF86.0MB15 | 2P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 1(4) | 013 | f | CARBIDE | |
| G7 | 7.46 | 6.85 | NRSM78.0NP10 | 4P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 1(6) | 028 | f | ||
| G7 | 7.46 | 6.85 | NRSM78.0NP15 | 4P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 1(6) | 028 | f | ||
| M8X1.25 | G7 | 7.46 | 6.85 | NRSM78.0NB10 | 2P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 1(6) | 028 | f | |
| G7 | 7.46 | 6.85 | NRSM78.0NB15 | 2P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 1(6) | 028 | f | LONG | |
| G7 | 9.3 | 8.6 | NRSM7010OP10 | 4P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 1(6) | 028 | f | JIS | |
| M1X1 | G7 | 9.3 | 8.6 | NRSM7010OP15 | 4P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 1(6) | 028 | f | |
| 0.5 | G7 | 9.3 | 8.6 | NRSM7010OB10 | 2P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 1(6) | 028 | f | HAND |
| G7 | 9.3 | 8.6 | NRSM7010OB15 | 2P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 1(6) | 028 | f | TAPS | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | EG (STI) | |||||||||||||||
| M10X1.25 | G7 | 9.42 | 8.85 | NRSM7010NB10 | 2P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 1(6) | 028 | f | |
| G7 | 9.42 | 8.85 | NRSM7010NB15 | 2P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 1(6) | 028 | f | ||
