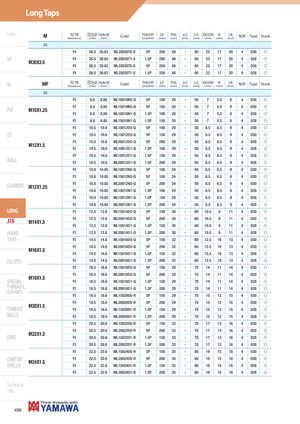

Общий каталог Yamawa 2021 - страница 497
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
M Code NOF Type Stock
(tolerance) (mm) (mm) (chamfer) ( mm ) ( mm ) ( mm ) ( mm ) ( mm ) ( mm ) ( mm )
| JIS | P4 | 265 | 2663 | ML20030T5-S | 5P | 200 | 48 | - | 80 | 23 | 17 | 20 | 4 | 030 | f | |
| SP | P4 | . 26.5 | . 26.63 | ML20030T1-S | 1.5P | 200 | 48 | - | 80 | 23 | 17 | 20 | 4 | 028 | f | |
| M30X3.5 | P4 | 26.5 | 26.63 | ML25030T5-S | 5P | 250 | 48 | - | 80 | 23 | 17 | 20 | 4 | 030 | f | |
| P4 | 26.5 | 26.63 | ML25030T1-S | 1.5P | 250 | 48 | - | 80 | 23 | 17 | 20 | 4 | 028 | f | ||
| SL | MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| P2 | 8.8 | 8.85 | ML10010N5-Q | 5P | 100 | 20 | - | 50 | 7 | 5.5 | 8 | 4 | 030 | f | ||
| PO | P2 | 8.8 | 8.85 | ML15010N5-Q | 5P | 150 | 20 | - | 50 | 7 | 5.5 | 8 | 4 | 030 | f | |
| M10X1.25 | P2 | 8.8 | 8.85 | ML10010N1-Q | 1.5P | 100 | 20 | - | 50 | 7 | 5.5 | 8 | 4 | 028 | f | |
| P2 | 8.8 | 8.85 | ML15010N1-Q | 1.5P | 150 | 20 | - | 50 | 7 | 5.5 | 8 | 4 | 028 | f | ||
| P2 | 10.5 | 10.6 | ML10012O5-Q | 5P | 100 | 29 | - | 50 | 8.5 | 6.5 | 9 | 4 | 030 | f | ||
| ST | P2 | 10.5 | 10.6 | ML15012O5-Q | 5P | 150 | 29 | - | 50 | 8.5 | 6.5 | 9 | 4 | 030 | f | |
| P2 | 10.5 | 10.6 | ML20012O5-Q | 5P | 200 | 29 | - | 50 | 8.5 | 6.5 | 9 | 4 | 030 | f | ||
| M12X1.5 | P2 | 10.5 | 10.6 | ML10012O1-Q | 1.5P | 100 | 29 | - | 50 | 8.5 | 6.5 | 9 | 4 | 028 | f | |
| P2 | 10.5 | 10.6 | ML15012O1-Q | 1.5P | 150 | 29 | - | 50 | 8.5 | 6.5 | 9 | 4 | 028 | f | ||
| ROLL | P2 | 10.5 | 10.6 | ML20012O1-Q | 1.5P | 200 | 29 | - | 50 | 8.5 | 6.5 | 9 | 4 | 028 | f | |
| P2 | 10.8 | 10.85 | ML10012N5-Q | 5P | 100 | 24 | - | 50 | 8.5 | 6.5 | 9 | 4 | 030 | f | ||
| P2 | 10.8 | 10.85 | ML15012N5-Q | 5P | 150 | 24 | - | 50 | 8.5 | 6.5 | 9 | 4 | 030 | f | ||
| CARBIDE | P2 | 10.8 | 10.85 | ML20012N5-Q | 5P | 200 | 24 | - | 50 | 8.5 | 6.5 | 9 | 4 | 030 | f | |
| M12X1.25 | P2 | 10.8 | 10.85 | ML10012N1-Q | 1.5P | 100 | 24 | - | 50 | 8.5 | 6.5 | 9 | 4 | 028 | f | |
| P2 | 10.8 | 10.85 | ML15012N1-Q | 1.5P | 150 | 24 | - | 50 | 8.5 | 6.5 | 9 | 4 | 028 | f | ||
| P2 | 10.8 | 10.85 | ML20012N1-Q | 1.5P | 200 | 24 | - | 50 | 8.5 | 6.5 | 9 | 4 | 028 | f | ||
| LONG | P2 | 12.5 | 12.6 | ML15014O5-Q | 5P | 150 | 30 | - | 60 | 10.5 | 8 | 11 | 4 | 030 | f | |
| JIS | P2 | 12.5 | 12.6 | ML20014O5-Q | 5P | 200 | 30 | - | 60 | 10.5 | 8 | 11 | 4 | 030 | f | |
| M14X1.5 | P2 | 12.5 | 12.6 | ML15014O1-Q | 1.5P | 150 | 30 | - | 60 | 10.5 | 8 | 11 | 4 | 028 | f | |
| HAND | P2 | 12.5 | 12.6 | ML20014O1-Q | 1.5P | 200 | 30 | - | 60 | 10.5 | 8 | 11 | 4 | 028 | f | |
| TAPS | P2 | 14.5 | 14.6 | ML15016O5-Q | 5P | 150 | 32 | - | 60 | 12.5 | 10 | 13 | 4 | 030 | f | |
| P2 | 14.5 | 14.6 | ML20016O5-Q | 5P | 200 | 32 | - | 60 | 12.5 | 10 | 13 | 4 | 030 | f | ||
| M16X1.5 | P2 | 14.5 | 14.6 | ML15016O1-Q | 1.5P | 150 | 32 | - | 60 | 12.5 | 10 | 13 | 4 | 028 | f | |
| EG (STI) | P2 | 14.5 | 14.6 | ML20016O1-Q | 1.5P | 200 | 32 | - | 60 | 12.5 | 10 | 13 | 4 | 028 | f | |
| P2 | 16.5 | 16.6 | ML15018O5-Q | 5P | 150 | 29 | - | 70 | 14 | 11 | 14 | 4 | 030 | f | ||
| P2 | 16.5 | 16.6 | ML20018O5-Q | 5P | 200 | 29 | - | 70 | 14 | 11 | 14 | 4 | 030 | f | ||
| SPECIAL | M18X1.5 | P2 | 16.5 | 16.6 | ML15018O1-Q | 1.5P | 150 | 29 | - | 70 | 14 | 11 | 14 | 4 | 028 | f |
| THREADS, | P2 | 16.5 | 16.6 | ML20018O1-Q | 1.5P | 200 | 29 | - | 70 | 14 | 11 | 14 | 4 | 028 | f | |
| GAUGES | P3 | 18.5 | 18.6 | ML15020O5-R | 5P | 150 | 29 | - | 70 | 15 | 12 | 15 | 4 | 030 | f | |
| P3 | 18.5 | 18.6 | ML20020O5-R | 5P | 200 | 29 | - | 70 | 15 | 12 | 15 | 4 | 030 | f | ||
| THREAD | M20X1.5 | P3 | 18.5 | 18.6 | ML15020O1-R | 1.5P | 150 | 29 | - | 70 | 15 | 12 | 15 | 4 | 028 | f |
| MILLS | P3 | 18.5 | 18.6 | ML20020O1-R | 1.5P | 200 | 29 | - | 70 | 15 | 12 | 15 | 4 | 028 | f | |
| P3 | 20.5 | 20.6 | ML15022O5-R | 5P | 150 | 33 | - | 70 | 17 | 13 | 16 | 4 | 030 | f | ||
| P3 | 20.5 | 20.6 | ML20022O5-R | 5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 030 | f | ||
| DIES | M22X1.5 | P3 | 20.5 | 20.6 | ML15022O1-R | 1.5P | 150 | 33 | - | 70 | 17 | 13 | 16 | 4 | 028 | f |
| P3 | 20.5 | 20.6 | ML20022O1-R | 1.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 028 | f | ||
| P3 | 22.5 | 22.6 | ML15024O5-R | 5P | 150 | 35 | - | 80 | 19 | 15 | 18 | 4 | 030 | f | ||
| CENTER | P3 | 22.5 | 22.6 | ML20024O5-R | 5P | 200 | 35 | - | 80 | 19 | 15 | 18 | 4 | 030 | f | |
| DRILLS | M24X1.5 | P3 | 22.5 | 22.6 | ML15024O1-R | 1.5P | 150 | 35 | - | 80 | 19 | 15 | 18 | 4 | 028 | f |
| P3 | 22.5 | 22.6 | ML20024O1-R | 1.5P | 200 | 35 | - | 80 | 19 | 15 | 18 | 4 | 028 | f |
