MF	TCTR (tolerance)	Ø (mm)	Hole Ø (mm)	Code	THCHT (chamfer)	LF ( mm )	THL ( mm )	LU ( mm )	LS ( mm )	DCON ( mm )	K ( mm )	LK ( mm )	NOF	Type	Stock	Intro
JIS	P3	38	38.12	L25040Q5-R	5P	250	45	-	100	30	23	26	4	013	f
M40X2	P3	38	38.12	L30040Q5-R	5P	300	45	-	100	30	23	26	4	013	f	SP
	P3	38	38.12	L25040Q1-R	1.5P	250	45	-	100	30	23	26	4	013	f
	P3	38	38.12	L30040Q1-R	1.5P	300	45	-	100	30	23	26	4	013	f
	P3	38.5	38.6	L25040O5-R	5P	250	45	-	100	30	23	26	4	013	f
M40X15	P3	38.5	38.6	L30040O5-R	5P	300	45	-	100	30	23	26	4	013	f	SL
.	P3	38.5	38.6	L25040O1-R	1.5P	250	45	-	100	30	23	26	4	013	f
	P3	38.5	38.6	L30040O1-R	1.5P	300	45	-	100	30	23	26	4	013	f
	P3	39	39.13	L25042S5-R	5P	250	60	-	100	32	26	30	4	013	f	PO
M42X3	P3	39	39.13	L30042S5-R	5P	300	60	-	100	32	26	30	4	013	f
	P3	39	39.13	L25042S1-R	1.5P	250	60	-	100	32	26	30	4	013	f
	P3	39	39.13	L30042S1-R	1.5P	300	60	-	100	32	26	30	4	013	f
	P3	40	40.12	L25042Q5-R	5P	250	45	-	100	32	26	30	4	013	f	ST
M42X2	P3	40	40.12	L30042Q5-R	5P	300	45	-	100	32	26	30	4	013	f
	P3	40	40.12	L25042Q1-R	1.5P	250	45	-	100	32	26	30	4	013	f
	P3	40	40.12	L30042Q1-R	1.5P	300	45	-	100	32	26	30	4	013	f	R
	P3	40.5	40.6	L30042O5-R	5P	300	45	-	100	32	26	30	4	013	f	OLL
M42X15	P3	40.5	40.6	L25042O1-R	1.5P	250	45	-	100	32	26	30	4	013	f
.	P3	40.5	40.6	L30042O1-R	1.5P	300	45	-	100	32	26	30	4	013	f
	P3	40.5	40.6	L25042O5-R	5P	250	45	-	100	32	26	30	4	013	f	CARBIDE
	P3	42	42.13	L30045S5-R	5P	300	67	-	100	35	26	30	4	013	f
M45X3	P3	42	42.13	L30045S1-R	1.5P	300	67	-	100	35	26	30	4	013	f
	P3	43	43.12	L30045Q5-R	5P	300	45	-	100	35	26	30	4	013	f
M45X2	P3	43	43.12	L30045Q1-R	1.5P	300	45	-	100	35	26	30	4	013	f	LONG
M4X1	P3	43.5	43.6	L30045O5-R	5P	300	45	-	100	35	26	30	4	013	f	JIS
5.5	P3	43.5	43.6	L30045O1-R	1.5P	300	45	-	100	35	26	30	4	013	f
M4X	P3	45	45.13	L30048S5-R	5P	300	67	-	100	38	29	32	4	013	f	HAND
83	P3	45	45.13	L30048S1-R	1.5P	300	67	-	100	38	29	32	4	013	f	TAPS
	P3	46	46.12	L30048Q5-R	5P	300	45	-	100	38	29	32	4	013	f
M48X2	P3	46	46.12	L30048Q1-R	1.5P	300	45	-	100	38	29	32	4	013	f
	P3	46.5	46.6	L30048O5-R	5P	300	45	-	100	38	29	32	4	013	f	EG (STI)
M48X1.5	P3	46.5	46.6	L30048O1-R	1.5P	300	45	-	100	38	29	32	4	013	f
UNC	TCTR (tolerance)	Ø (mm)	Hole Ø (mm)	Code	THCHT (chamfer)	LF ( mm )	THL ( mm )	LU ( mm )	LS ( mm )	DCON ( mm )	K ( mm )	LK ( mm )	NOF	Type	Stock	SPECIAL
JIS																THREADS, GAUGES
	P2	5.1	5.19	TNFQU04N515	5P	150	15	30	40	6	4.5	7	3	011	f
	P2	5.1	5.19	TNFQU04N520	5P	200	15	30	40	6	4.5	7	3	011	f
1/4-20UNC	P2	5.1	5.19	TNFQU04N115	1.5P	150	15	30	40	6	4.5	7	3	011	f	THREAD
	P2	5.1	5.19	TNFQU04N120	1.5P	200	15	30	40	6	4.5	7	3	011	f	MILLS
	P2	6.6	6.65	TNMQU05O515	5P	150	19	-	50	6.2	5	8	4	013	f
	P2	6.6	6.65	TNMQU05O520	5P	200	19	-	50	6.2	5	8	4	013	f
5/16-18UNC	P2	6.6	6.65	TNMQU05O115	1.5P	150	19	-	50	6.2	5	8	4	013	f	DIES
	P2	6.6	6.65	TNMQU05O120	1.5P	200	19	-	50	6.2	5	8	4	013	f
	P2	8	8.07	TNMQU06P515	5P	150	23	-	50	7	5.5	8	4	013	f
3/8-16UNC	P2	8	8.07	TNMQU06P520	5P	200	23	-	50	7	5.5	8	4	013	f	CENTER
	P2	8	8.07	TNMQU06P115	1.5P	150	23	-	50	7	5.5	8	4	013	f	DRILLS
	P2	8	8.07	TNMQU06P120	1.5P	200	23	-	50	7	5.5	8	4	013	f

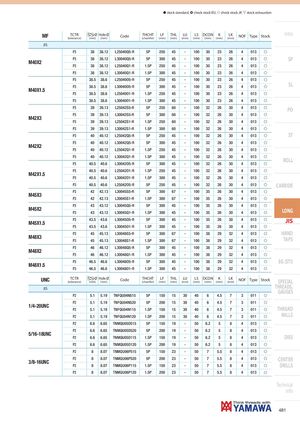

Общий каталог Yamawa 2021 - страница 480
