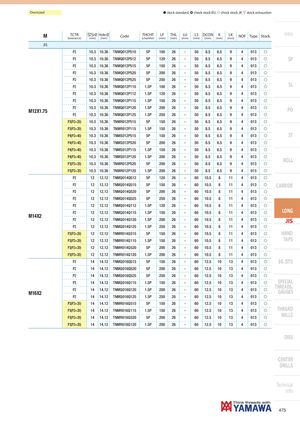

Общий каталог Yamawa 2021 - страница 474
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | N | OF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| P2 | 10.3 | 10.36 | TNMQ012P510 | 5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P2 | 10.3 | 10.36 | TNMQ012P512 | 5P | 120 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | SP | ||
| P2 | 10.3 | 10.36 | TNMQ012P515 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P2 | 10.3 | 10.36 | TNMQ012P520 | 5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P2 | 10.3 | 10.36 | TNMQ012P525 | 5P | 250 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P2 | 10.3 | 10.36 | TNMQ012P110 | 1.5P | 100 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | SL | ||
| P2 | 10.3 | 10.36 | TNMQ012P112 | 1.5P | 120 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P2 | 10.3 | 10.36 | TNMQ012P115 | 1.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| M12X175 | P2 | 10.3 | 10.36 | TNMQ012P120 | 1.5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | PO | |
| . | P2 | 10.3 | 10.36 | TNMQ012P125 | 1.5P | 250 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ||
| P3(P2+20) | 10.3 | 10.36 | TNMR012P515 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P3(P2+20) | 10.3 | 10.36 | TNMR012P115 | 1.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P4(P2+40) | 10.3 | 10.36 | TNMS012P515 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ST | ||
| P4(P2+40) | 10.3 | 10.36 | TNMS012P520 | 5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P4(P2+40) | 10.3 | 10.36 | TNMS012P115 | 1.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P4(P2+40) | 10.3 | 10.36 | TNMS012P120 | 1.5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | ROLL | ||
| P3(P2+20) | 10.3 | 10.36 | TNMR012P520 | 5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P3(P2+20) | 10.3 | 10.36 | TNMR012P120 | 1.5P | 200 | 26 | - | 50 | 8.5 | 6.5 | 9 | 4 | 013 | f | |||
| P2 | 12 | 12.12 | TNMQ014Q512 | 5P | 120 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| P2 | 12 | 12.12 | TNMQ014Q515 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | CARBIDE | ||
| P2 | 12 | 12.12 | TNMQ014Q520 | 5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| P2 | 12 | 12.12 | TNMQ014Q525 | 5P | 250 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| P2 | 12 | 12.12 | TNMQ014Q112 | 1.5P | 120 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| M14X2 | P2 | 12 | 12.12 | TNMQ014Q115 | 1.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | LONG | |
| P2 | 12 | 12.12 | TNMQ014Q120 | 1.5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | JIS | ||
| P2 | 12 | 12.12 | TNMQ014Q125 | 1.5P | 250 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| P3(P2+20) | 12 | 12.12 | TNMR014Q515 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | HAND | ||
| P3(P2+20) | 12 | 12.12 | TNMR014Q115 | 1.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | TAPS | ||
| P3(P2+20) | 12 | 12.12 | TNMR014Q520 | 5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| P3(P2+20) | 12 | 12.12 | TNMR014Q120 | 1.5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 4 | 013 | f | |||
| P2 | 14 | 14.12 | TNMQ016Q515 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | EG (STI) | ||
| P2 | 14 | 14.12 | TNMQ016Q520 | 5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | |||
| P2 | 14 | 14.12 | TNMQ016Q525 | 5P | 250 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | |||
| P2 | 14 | 14.12 | TNMQ016Q115 | 1.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | SPECIAL | ||
| P2 | 14 | 14.12 | TNMQ016Q120 | 1.5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | THREADS, GAGES | ||
| M16X2 | P2 | 14 | 14.12 | TNMQ016Q125 | 1.5P | 250 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | U | |
| P3(P2+20) | 14 | 14.12 | TNMR016Q515 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | |||
| P3(P2+20) | 14 | 14.12 | TNMR016Q115 | 1.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | THREAD | ||
| P3(P2+20) | 14 | 14.12 | TNMR016Q520 | 5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f | MILLS | ||
| P3(P2+20) | 14 | 14.12 | TNMR016Q120 | 1.5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 4 | 013 | f |
