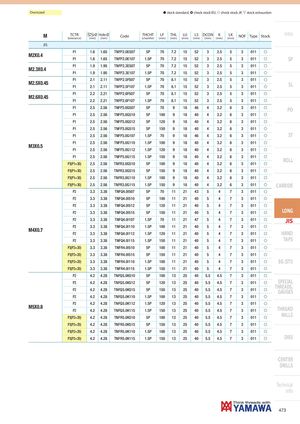

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | N | OF | Type | Stock | Intro |
| JIS | |||||||||||||||||
| P1 | 1.6 | 1.65 | TNFP2.0E507 | 5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | |||
| M2X0.4 | P1 | 1.6 | 1.65 | TNFP2.0E107 | 1.5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | SP | |
| M23X04 | P1 | 1.9 | 1.95 | TNFP2.3E507 | 5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| .. | P1 | 1.9 | 1.95 | TNFP2.3E107 | 1.5P | 70 | 7.2 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| M25X045 | P1 | 2.1 | 2.11 | TNFP2.5F507 | 5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| .. | P1 | 2.1 | 2.11 | TNFP2.5F107 | 1.5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | SL | |
| M26X045 | P1 | 2.2 | 2.21 | TNFP2.6F507 | 5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| .. | P1 | 2.2 | 2.21 | TNFP2.6F107 | 1.5P | 70 | 8.1 | 15 | 52 | 3 | 2.5 | 5 | 3 | 011 | f | ||
| P1 | 2.5 | 2.56 | TNFP3.0G507 | 5P | 70 | 9 | 18 | 46 | 4 | 3.2 | 6 | 3 | 011 | f | PO | ||
| P1 | 2.5 | 2.56 | TNFP3.0G510 | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P1 | 2.5 | 2.56 | TNFP3.0G512 | 5P | 120 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P1 | 2.5 | 2.56 | TNFP3.0G515 | 5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P1 | 2.5 | 2.56 | TNFP3.0G107 | 1.5P | 70 | 9 | 18 | 46 | 4 | 3.2 | 6 | 3 | 011 | f | ST | ||
| P1 | 2.5 | 2.56 | TNFP3.0G110 | 1.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| M3X0.5 | P1 | 2.5 | 2.56 | TNFP3.0G112 | 1.5P | 120 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | ||
| P1 | 2.5 | 2.56 | TNFP3.0G115 | 1.5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | ROLL | ||
| P3(P1+30) | 2.5 | 2.56 | TNFR3.0G510 | 5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P3(P1+30) | 2.5 | 2.56 | TNFR3.0G515 | 5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P3(P1+30) | 2.5 | 2.56 | TNFR3.0G110 | 1.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |||
| P3(P1+30) | 2.5 | 2.56 | TNFR3.0G115 | 1.5P | 150 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | CARBIDE | ||
| P2 | 3.3 | 3.38 | TNFQ4.0I507 | 5P | 70 | 11 | 21 | 43 | 5 | 4 | 7 | 3 | 011 | f | |||
| P2 | 3.3 | 3.38 | TNFQ4.0I510 | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P2 | 3.3 | 3.38 | TNFQ4.0I512 | 5P | 120 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P2 | 3.3 | 3.38 | TNFQ4.0I515 | 5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | LONG | ||
| P2 | 3.3 | 3.38 | TNFQ4.0I107 | 1.5P | 70 | 11 | 21 | 47 | 5 | 4 | 7 | 3 | 011 | f | JIS | ||
| P2 | 3.3 | 3.38 | TNFQ4.0I110 | 1.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| M4X0.7 | P2 | 3.3 | 3.38 | TNFQ4.0I112 | 1.5P | 120 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | HAND | |
| P2 | 3.3 | 3.38 | TNFQ4.0I115 | 1.5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | TAPS | ||
| P3(P2+20) | 3.3 | 3.38 | TNFR4.0I510 | 5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P3(P2+20) | 3.3 | 3.38 | TNFR4.0I515 | 5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P3(P2+20) | 3.3 | 3.38 | TNFR4.0I110 | 1.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | EG (STI) | ||
| P3(P2+20) | 3.3 | 3.38 | TNFR4.0I115 | 1.5P | 150 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | |||
| P2 | 4.2 | 4.28 | TNFQ5.0K510 | 5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |||
| P2 | 4.2 | 4.28 | TNFQ5.0K512 | 5P | 120 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | SPECIAL | ||
| P2 | 4.2 | 4.28 | TNFQ5.0K515 | 5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | THREADS, GAUGES | ||
| P2 | 4.2 | 4.28 | TNFQ5.0K110 | 1.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |||
| P2 | 4.2 | 4.28 | TNFQ5.0K112 | 1.5P | 120 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |||
| M5X0.8 | THREAD | ||||||||||||||||
| P2 | 4.2 | 4.28 | TNFQ5.0K115 | 1.5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 011 | f | ||||
| P3(P2+20) | 4.2 | 4.28 | TNFR5.0K510 | 5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | MILLS | ||
| P3(P2+20) | 4.2 | 4.28 | TNFR5.0K515 | 5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |||
| P3(P2+20) | 4.2 | 4.28 | TNFR5.0K110 | 1.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |||
| P3(P2+20) | 4.2 | 4.28 | TNFR5.0K115 | 1.5P | 150 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | DIES |
