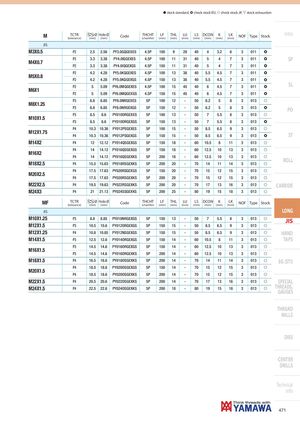

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| M3X0.5 | P2 | 2.5 | 2.56 | PY3.0GQGEXES | 4.5P | 100 | 9 | 28 | 40 | 4 | 3.2 | 6 | 3 | 011 | ) | |
| M4X07 | P2 | 3.3 | 3.38 | PY4.0IQGEXES | 4.5P | 100 | 11 | 31 | 40 | 5 | 4 | 7 | 3 | 011 | ) | SP |
| . | P2 | 3.3 | 3.38 | PY4.0IQGEXGS | 4.5P | 150 | 11 | 31 | 40 | 5 | 4 | 7 | 3 | 011 | ) | |
| P2 | 4.2 | 4.28 | PY5.0KQGEXES | 4.5P | 100 | 13 | 38 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | ) | ||
| M5X0.8 | P2 | 4.2 | 4.28 | PY5.0KQGEXGS | 4.5P | 150 | 13 | 38 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | ) | |
| P2 | 5 | 5.09 | PY6.0MQGEXES | 4.5P | 100 | 15 | 45 | 40 | 6 | 4.5 | 7 | 3 | 011 | ) | SL | |
| M6X1 | P2 | 5 | 5.09 | PY6.0MQGEXGS | 4.5P | 150 | 15 | 45 | 40 | 6 | 4.5 | 7 | 3 | 011 | ) | |
| MX | P3 | 6.8 | 6.85 | PY8.0NRGEXES | 5P | 100 | 12 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| 81.25 | P3 | 6.8 | 6.85 | PY8.0NRGEXGS | 5P | 150 | 12 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | ) | PO |
| P3 | 8.5 | 8.6 | PY010ORGEXES | 5P | 100 | 13 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | ||
| M10X1.5 | P3 | 8.5 | 8.6 | PY010ORGEXGS | 5P | 150 | 13 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | ) | |
| P4 | 10.3 | 10.36 | PY012PSGEXES | 5P | 100 | 15 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | ||
| M12X1.75 | P4 | 10.3 | 10.36 | PY012PSGEXGS | 5P | 150 | 15 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | ) | ST |
| M14X2 | P4 | 12 | 12.12 | PY014QSGEXGS | 5P | 150 | 18 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | |
| P4 | 14 | 14.12 | PY016QSGEXGS | 5P | 150 | 18 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | ||
| M16X2 | P4 | 14 | 14.12 | PY016QSGEXKS | 5P | 200 | 18 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | |
| M18X2.5 | P4 | 15.5 | 15.63 | PY018RSGEXKS | 5P | 200 | 20 | - | 70 | 14 | 11 | 14 | 3 | 013 | f | ROLL |
| P4 | 17.5 | 17.63 | PY020RSGEXGS | 5P | 150 | 20 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | ||
| M20X2.5 | P4 | 17.5 | 17.63 | PY020RSGEXKS | 5P | 200 | 20 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | |
| M22X2.5 | P4 | 19.5 | 19.63 | PY022RSGEXKS | 5P | 200 | 20 | - | 70 | 17 | 13 | 16 | 3 | 013 | f | CARBIDE |
| M24X3 | P4 | 21 | 21.13 | PY024SSGEXKS | 5P | 200 | 25 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | LONG | |||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | PY010NRGEXGS | 5P | 150 | 13 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | JIS |
| M12X1.5 | P3 | 10.5 | 10.6 | PY012ORGEXGS | 5P | 150 | 15 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M12X1.25 | P4 | 10.8 | 10.85 | PY012NSGEXGS | 5P | 150 | 15 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | HAND |
| M14X1.5 | P3 | 12.5 | 12.6 | PY014ORGEXGS | 5P | 150 | 14 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | TAPS |
| P3 | 14.5 | 14.6 | PY016ORGEXGS | 5P | 150 | 14 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | ||
| M16X1.5 | P3 | 14.5 | 14.6 | PY016ORGEXKS | 5P | 200 | 14 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | |
| M18X1.5 | P4 | 16.5 | 16.6 | PY018OSGEXKS | 5P | 200 | 14 | - | 70 | 14 | 11 | 14 | 3 | 013 | f | EG (STI) |
| P4 | 18.5 | 18.6 | PY020OSGEXGS | 5P | 150 | 14 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | ||
| M20X1.5 | P4 | 18.5 | 18.6 | PY020OSGEXKS | 5P | 200 | 14 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | |
| M22X1.5 | P4 | 20.5 | 20.6 | PY022OSGEXKS | 5P | 200 | 14 | - | 70 | 17 | 13 | 16 | 3 | 013 | f | SPECIAL |
| M24X1.5 | P4 | 22.5 | 22.6 | PY024OSGEXKS | 5P | 200 | 18 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | THREADS, |
| GAUGES THREAD MILLS |
