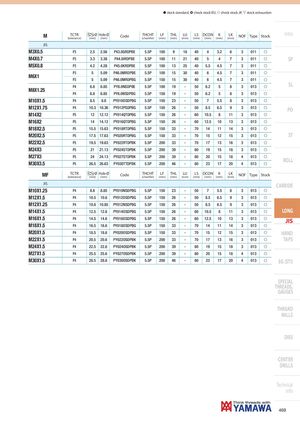

Общий каталог Yamawa 2021 - страница 468
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| M3X0.5 | P3 | 2.5 | 2.56 | P43.0GRDPBE | 5.5P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 011 | f | |
| M4X0.7 | P3 | 3.3 | 3.38 | P44.0IRDPBE | 5.5P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 011 | f | SP |
| M5X0.8 | P3 | 4.2 | 4.28 | P45.0KRDPBE | 5.5P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 011 | f | |
| P3 | 5 | 5.09 | P46.0MRDPBE | 5.5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | ||
| M6X1 | P3 | 5 | 5.09 | P46.0MRDPBG | 5.5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | |
| P4 | 6.8 | 6.85 | PY8.0NSDPBE | 5.5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | SL | |
| M8X1.25 | P4 | 6.8 | 6.85 | PY8.0NSDPBG | 5.5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| M10X1.5 | P4 | 8.5 | 8.6 | PY010OSDPBG | 5.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| M12X1.75 | P4 | 10.3 | 10.36 | PY012PSDPBG | 5.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | PO |
| M14X2 | P5 | 12 | 12.12 | PY014QTDPBG | 5.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | |
| M16X2 | P5 | 14 | 14.12 | PY016QTDPBG | 5.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | |
| M18X2.5 | P5 | 15.5 | 15.63 | PY018RTDPBG | 5.5P | 150 | 33 | - | 70 | 14 | 11 | 14 | 3 | 013 | f | |
| M20X2.5 | P5 | 17.5 | 17.63 | PY020RTDPBG | 5.5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | ST |
| M22X2.5 | P5 | 19.5 | 19.63 | PY022RTDPBK | 5.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f | |
| M24X3 | P5 | 21 | 21.13 | PY024STDPBK | 5.5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | |
| M27X3 | P5 | 24 | 24.13 | PY027STDPBK | 5.5P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 013 | f | |
| M30X3.5 | P5 | 26.5 | 26.63 | PY030TTDPBK | 5.5P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 013 | f | ROLL |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | CARBIDE | |||||||||||||||
| M10X1.25 | P4 | 8.8 | 8.85 | PY010NSDPBG | 5.5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| M12X1.5 | P4 | 10.5 | 10.6 | PY012OSDPBG | 5.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M12X1.25 | P4 | 10.8 | 10.85 | PY012NSDPBG | 5.5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f | |
| M14X1.5 | P4 | 12.5 | 12.6 | PY014OSDPBG | 5.5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | LONG |
| M16X1.5 | P4 | 14.5 | 14.6 | PY016OSDPBG | 5.5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | JIS |
| M18X1.5 | P4 | 16.5 | 16.6 | PY018OSDPBG | 5.5P | 150 | 33 | - | 70 | 14 | 11 | 14 | 3 | 013 | f | |
| M20X1.5 | P4 | 18.5 | 18.6 | PY020OSDPBG | 5.5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | HAND |
| M22X1.5 | P4 | 20.5 | 20.6 | PY022OSDPBK | 5.5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f | TAPS |
| M24X1.5 | P4 | 22.5 | 22.6 | PY024OSDPBK | 5.5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | |
| M27X1.5 | P4 | 25.5 | 25.6 | PY027OSDPBK | 5.5P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 013 | f | |
| M30X1.5 | P4 | 28.5 | 28.6 | PY030OSDPBK | 5.5P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 013 | f | EG (STI) |
