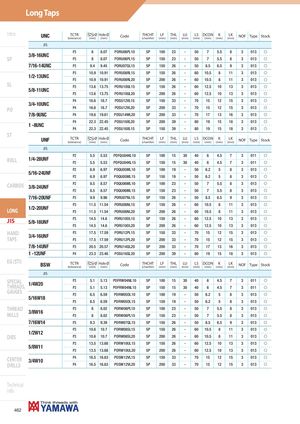

Общий каталог Yamawa 2021 - страница 461
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
UNC Code NOF Type Stock
(tolerance) (mm) (mm) (chamfer) ( mm ) ( mm ) ( mm ) ( mm ) ( mm ) ( mm ) ( mm )
| JIS | P3 | 8 | 8.07 | PORU06PL10 | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f |
| 3/8-16UNC | P3 | 8 | 8.07 | PORU06PL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f |
| 7/16-14UNC | P3 | 9.4 | 9.45 | PORU07QL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| P3 | 10.9 | 10.91 | PORU08RL15 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | |
| 1/2-13UNC | P3 | 10.9 | 10.91 | PORU08RL20 | 5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f |
| 5/811UNC | P3 | 13.6 | 13.75 | PORU10UL15 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f |
| - | P3 | 13.6 | 13.75 | PORU10UL20 | 5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f |
| P4 | 16.6 | 16.7 | POSU12VL15 | 5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | |
| 3/4-10UNC | P4 | 16.6 | 16.7 | POSU12VL20 | 5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f |
| 7/8-9UNC | P4 | 19.6 | 19.61 | POSU14WL20 | 5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f |
| P4 | 22.3 | 22.45 | POSU16XL20 | 5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f | |
| 1 -8UNC | P4 | 22.3 | 22.45 | POSU16XL15 | 5P | 150 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f |
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| 1/428UNF | P2 | 5.5 | 5.53 | POFQU04KL10 | 5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f |
| - | P2 | 5.5 | 5.53 | POFQU04KL15 | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f |
| P2 | 6.9 | 6.97 | POQU05ML10 | 5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| 5/16-24UNF | P2 | 6.9 | 6.97 | POQU05ML15 | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f |
| P2 | 8.5 | 8.57 | POQU06ML10 | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| 3/8-24UNF | P2 | 8.5 | 8.57 | POQU06ML15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f |
| 7/16-20UNF | P3 | 9.9 | 9.96 | PORU07NL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| P3 | 11.5 | 11.54 | PORU08NL15 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | |
| 1/2-20UNF | P3 | 11.5 | 11.54 | PORU08NL20 | 5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f |
| P3 | 14.5 | 14.6 | PORU10OL15 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | |
| 5/8-18UNF | P3 | 14.5 | 14.6 | PORU10OL20 | 5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f |
| P3 | 17.5 | 17.59 | PORU12PL15 | 5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | |
| 3/4-16UNF | P3 | 17.5 | 17.59 | PORU12PL20 | 5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f |
| 7/8-14UNF | P3 | 20.5 | 20.57 | PORU14QL20 | 5P | 200 | 33 | - | 70 | 17 | 13 | 16 | 3 | 013 | f |
| 1 -12UNF | P4 | 23.3 | 23.46 | POSU16SL20 | 5P | 200 | 39 | - | 80 | 19 | 15 | 18 | 3 | 013 | f |
| BSW | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| P3 | 5.1 | 5.13 | POFRW04NL10 | 5P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f | |
| 1/4W20 | P3 | 5.1 | 5.13 | POFRW04NL15 | 5P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 011 | f |
| P3 | 6.5 | 6.59 | PORW05OL10 | 5P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f | |
| 5/16W18 | P3 | 6.5 | 6.59 | PORW05OL15 | 5P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 013 | f |
| P3 | 8 | 8.02 | PORW06PL10 | 5P | 100 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f | |
| 3/8W16 | P3 | 8 | 8.02 | PORW06PL15 | 5P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 013 | f |
| 7/16W14 | P3 | 9.3 | 9.39 | PORW07QL15 | 5P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 013 | f |
| P3 | 10.6 | 10.7 | PORW08SL15 | 5P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f | |
| 1/2W12 | P3 | 10.6 | 10.7 | PORW08SL20 | 5P | 200 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 013 | f |
| P3 | 13.5 | 13.68 | PORW10UL15 | 5P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f | |
| 5/8W11 | P3 | 13.5 | 13.68 | PORW10UL20 | 5P | 200 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 013 | f |
| P4 | 16.5 | 16.63 | POSW12VL15 | 5P | 150 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f | |
| 3/4W10 | P4 | 16.5 | 16.63 | POSW12VL20 | 5P | 200 | 33 | - | 70 | 15 | 12 | 15 | 3 | 013 | f |
