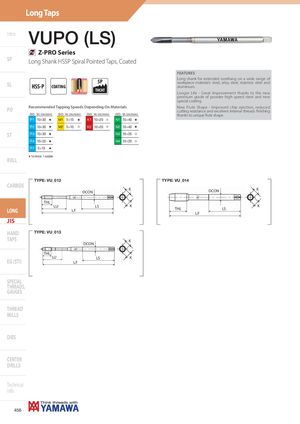

VUPO (LS)
Z-PRO Series
SP Long Shank HSSP Spiral Pointed Taps, Coated
5P
SL HSS-P
COATING
THCHT
PO Recommended Tapping Speeds Depending On Materials
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 10÷30 | H | M1 5÷15 | H | K1 | 10÷20 | I | N1 | 10÷40 | H | |
| P2 | 10÷30 | H | M2 5÷10 | I | K2 | 10÷20 | I | N2 | 10÷40 | H | |
| ST | P3 | 10÷30 | H | N3 | 10÷25 | I | |||||
| P4 | 10÷25 | H | N4 | 10÷20 | I | ||||||
| P7 | 5÷15 | H |
H 1st choice I suitable ROLL
FEATURES Long shank for extended overhang on a wide range of workpiece materials: steel, alloy steel, stainless steel and aluminium. Longer Life - Great improvement thanks to the new premium grade of powder high speed steel and new special coating. New Flute Shape - Improved chip ejection, reduced cutting resistance and excellent internal threads fi nishing thanks to unique fl ute shape.
JIS-VUPO (LS)
CARBIDE
LONG
JIS
HAND
TAPS
EG (STI)
TYPE: VU_012
THL LU
TYPE: VU_013
THL LU
TYPE: VU_014 K K DCON DCON
LS K K
LF THL LS
LF
K DCON
LS K LF
SPECIAL
THREADS,
