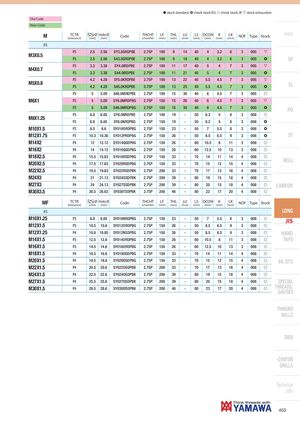

| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| JIS | ||||||||||||||||
| M3X05 | P3 | 2.5 | 2.56 | SY3.0GRDPBE | 2.75P | 100 | 9 | 14 | 40 | 4 | 3.2 | 6 | 3 | 005 | m | |
| . | P3 | 2.5 | 2.56 | S43.0GRDPBE | 2.75P | 100 | 9 | 18 | 40 | 4 | 3.2 | 6 | 3 | 005 | ) | SP |
| M4X07 | P3 | 3.3 | 3.38 | SY4.0IRDPBE | 2.75P | 100 | 11 | 17 | 40 | 5 | 4 | 7 | 3 | 005 | m | |
| . | P3 | 3.3 | 3.38 | S44.0IRDPBE | 2.75P | 100 | 11 | 21 | 40 | 5 | 4 | 7 | 3 | 005 | ) | |
| P3 | 4.2 | 4.28 | SY5.0KRDPBE | 2.75P | 100 | 13 | 22 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | m | ||
| M5X0.8 | P3 | 4.2 | 4.28 | S45.0KRDPBE | 2.75P | 100 | 13 | 25 | 40 | 5.5 | 4.5 | 7 | 3 | 005 | ) | SL |
| P3 | 5 | 5.09 | S46.0MRDPBE | 2.75P | 100 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | f | ||
| M6X1 | P3 | 5 | 5.09 | SY6.0MRDPBG | 2.75P | 150 | 15 | 26 | 40 | 6 | 4.5 | 7 | 3 | 005 | m | |
| P3 | 5 | 5.09 | S46.0MRDPBG | 2.75P | 150 | 15 | 30 | 40 | 6 | 4.5 | 7 | 3 | 005 | ) | PO | |
| P3 | 6.8 | 6.85 | SY8.0NRDPBE | 2.75P | 100 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | f | ||
| M8X1.25 | P3 | 6.8 | 6.85 | SY8.0NRDPBG | 2.75P | 150 | 19 | - | 50 | 6.2 | 5 | 8 | 3 | 008 | ) | |
| M10X1.5 | P3 | 8.5 | 8.6 | SY010ORDPBG | 2.75P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | ) | |
| M12X1.75 | P3 | 10.3 | 10.36 | SY012PRDPBG | 2.75P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | ) | ST |
| M14X2 | P4 | 12 | 12.12 | SY014QSDPBG | 2.75P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | |
| M16X2 | P4 | 14 | 14.12 | SY016QSDPBG | 2.75P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f | |
| M18X2.5 | P4 | 15.5 | 15.63 | SY018RSDPBG | 2.75P | 150 | 33 | - | 70 | 14 | 11 | 14 | 4 | 008 | f | |
| M20X2.5 | P4 | 17.5 | 17.63 | SY020RSDPBG | 2.75P | 150 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | ROLL |
| M22X2.5 | P4 | 19.5 | 19.63 | SY022RSDPBK | 2.75P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f | |
| M24X3 | P4 | 21 | 21.13 | SY024SSDPBK | 2.75P | 200 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f | |
| M27X3 | P4 | 24 | 24.13 | SY027SSDPBK | 2.75P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 008 | f | CARBIDE |
| M30X3.5 | P4 | 26.5 | 26.63 | SY030TSDPBK | 2.75P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | LONG | |||||||||||||||
| M10X1.25 | P3 | 8.8 | 8.85 | SY010NRDPBG | 2.75P | 150 | 23 | - | 50 | 7 | 5.5 | 8 | 3 | 008 | f | JIS |
| M12X1.5 | P3 | 10.5 | 10.6 | SY012ORDPBG | 2.75P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | |
| M12X1.25 | P4 | 10.8 | 10.85 | SY012NSDPBG | 2.75P | 150 | 26 | - | 50 | 8.5 | 6.5 | 9 | 3 | 008 | f | HAND |
| M14X1.5 | P3 | 12.5 | 12.6 | SY014ORDPBG | 2.75P | 150 | 26 | - | 60 | 10.5 | 8 | 11 | 3 | 008 | f | TAPS |
| M16X1.5 | P3 | 14.5 | 14.6 | SY016ORDPBG | 2.75P | 150 | 26 | - | 60 | 12.5 | 10 | 13 | 3 | 008 | f | |
| M18X1.5 | P4 | 16.5 | 16.6 | SY018OSDPBG | 2.75P | 150 | 33 | - | 70 | 14 | 11 | 14 | 4 | 008 | f | |
| M20X1.5 | P4 | 18.5 | 18.6 | SY020OSDPBG | 2.75P | 150 | 33 | - | 70 | 15 | 12 | 15 | 4 | 008 | f | EG (STI) |
| M22X1.5 | P4 | 20.5 | 20.6 | SY022OSDPBK | 2.75P | 200 | 33 | - | 70 | 17 | 13 | 16 | 4 | 008 | f | |
| M24X1.5 | P4 | 22.5 | 22.6 | SY024OSDPBK | 2.75P | 200 | 39 | - | 80 | 19 | 15 | 18 | 4 | 008 | f | |
| M27X1.5 | P4 | 25.5 | 25.6 | SY027OSDPBK | 2.75P | 200 | 39 | - | 80 | 20 | 15 | 18 | 4 | 008 | f | SPECIAL |
| M30X1.5 | P4 | 28.5 | 28.6 | SY030OSDPBK | 2.75P | 200 | 46 | - | 80 | 23 | 17 | 20 | 4 | 008 | f | THREADS, |
