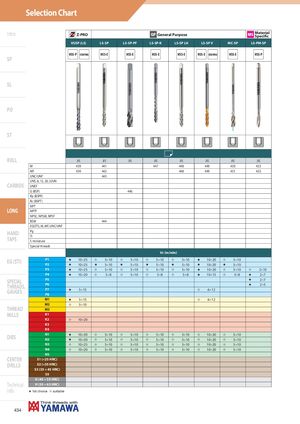

Общий каталог Yamawa 2021 - страница 433
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| Z-PRO | GP Gener | al Purpose | MS Material Specifi c | |||||
| VUSP (LS) | LS-SP | LS-SP-PF | LS-SP-K | LS-SP LH | LS-SP V | MC-SP | LS-PM-SP | |
| HSS-P COATING | HSS-E | HSS-E | HSS-E | HSS-E | HSS-E COATING | HSS-E | HSS-P | |
| JIS | JIS | JIS | JIS | JIS | JIS | JIS | JIS | |
| M | 439 | 441 | 447 | 448 | 449 | 450 | 453 | |
| MF | 439 | 442 | 448 | 449 | 451 | 453 | ||
| UNC/UNF UNS,8,12,20,32UN | 443 | |||||||
| UNEF G(BSP) Rp (BSPP) Rc(BSPT) NPT | 446 | |||||||
| NPTF | ||||||||
| NPSC,NPSM,NPSF | ||||||||
| BSW | 444 | |||||||
| EG(STI),M,MF,UNC/UNF P | ||||||||
| g Tr | ||||||||
| S miniature | ||||||||
| Special threads | ||||||||
| P1 | H 10÷25 | I 5÷10 | I 5÷10 | Vc (m I 5÷10 | /min) I 5÷10 | H 10÷20 | I 5÷10 | |
| P2 | H 10÷25 | H 5÷10 | H 5÷10 | H 5÷10 | H 5÷10 | H 10÷20 | H 5÷10 | |
| P3 | H 10÷25 | I 5÷10 | I 5÷10 | I 5÷10 | I 5÷10 | H 10÷20 | I 5÷10 | I 2÷10 |
| P4 P5 | H 10÷20 | I 5÷8 | I 5÷10 | I 5÷8 | I 5÷8 | H 10÷15 | I 5÷8 | H 2÷7 H |
| P6 | 2÷7 H 2÷5 | |||||||
| P7 P8 | H 5÷15 | I 6÷12 | ||||||
| M1 | H 5÷15 | I 6÷12 | ||||||
| M2 M3 | I 5÷10 | |||||||
| K1 K2 | I 10÷20 | |||||||
| K3 | ||||||||
| K4 N1 N2 | H 10÷30 | I 5÷10 | I 5÷10 | I 5÷10 | I 5÷10 | I 10÷20 | I 5÷10 | |
| N3 | H 10÷30 I 10÷25 | I 5÷10 I 5÷10 | I 5÷10 I 5÷10 | I 5÷10 I 5÷10 | I 5÷10 I 5÷10 | I 10÷20 I 10÷20 | I 5÷10 I 5÷10 | |
| N4 | I 10÷20 | I 5÷10 | I 5÷10 | I 5÷10 | I 5÷10 | I 10÷20 | I 5÷10 | |
| N5 S1 ( | ||||||||
| S2 ( | ||||||||
| S3 (35 ÷ 45 HRC) S5 | ||||||||
| H (45 ÷ 55 HRC) H (55 ÷ 63 HRC) |
