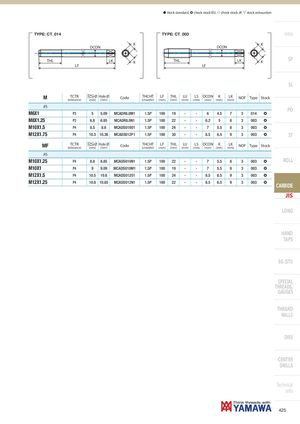

| TYPE: CT_014 | TYPE: CT_003 | Intro | ||||
| K | K | |||||
| DCON | DCON | |||||
| SP |
THL LK THL LK K
K LF LF
SL
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| M6X1 | P3 | 5 | 5.09 | MCADR6.0M1 | 1.5P | 100 | 19 | - | - | 6 | 4.5 | 7 | 3 | 014 | ) | PO |
| M8X1.25 | P3 | 6.8 | 6.85 | MCADR8.0N1 | 1.5P | 100 | 22 | - | - | 6.2 | 5 | 8 | 3 | 003 | ) | |
| M10X1.5 | P4 | 8.5 | 8.6 | MCADS010O1 | 1.5P | 100 | 24 | - | - | 7 | 5.5 | 8 | 3 | 003 | ) | |
| M12X1.75 | P4 | 10.3 | 10.36 | MCADS012P1 | 1.5P | 100 | 30 | - | - | 8.5 | 6.5 | 9 | 3 | 003 | ) | ST |
| MF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| JIS | ||||||||||||||||
| M10X1.25 | P4 | 8.8 | 8.85 | MCADS010N1 | 1.5P | 100 | 22 | - | - | 7 | 5.5 | 8 | 3 | 003 | ) | ROLL |
| M10X1 | P4 | 9 | 9.09 | MCADS010M1 | 1.5P | 100 | 19 | - | - | 7 | 5.5 | 8 | 3 | 003 | ) | |
| M12X1.5 | P4 | 10.5 | 10.6 | MCADS012O1 | 1.5P | 100 | 24 | - | - | 8.5 | 6.5 | 9 | 3 | 003 | ) | |
| M12X1.25 | P4 | 10.8 | 10.85 | MCADS012N1 | 1.5P | 100 | 22 | - | - | 8.5 | 6.5 | 9 | 3 | 003 | ) | |
| CARBIDE | ||||||||||||||||
| JIS | ||||||||||||||||
| LONG | ||||||||||||||||
| HAND TAPS EG (STI) | ||||||||||||||||
