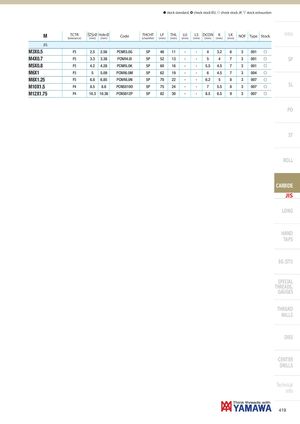

Общий каталог Yamawa 2021 - страница 418
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | |||||||||||||||
| M3X0.5 | P3 | 2.5 | 2.56 | PCNR3.0G | 5P | 46 | 11 | - | - | 4 | 3.2 | 6 | 3 | 001 | f |
| M4X0.7 | P3 | 3.3 | 3.38 | PCNR4.0I | 5P | 52 | 13 | - | - | 5 | 4 | 7 | 3 | 001 | f |
| M5X0.8 | P3 | 4.2 | 4.28 | PCNR5.0K | 5P | 60 | 16 | - | - | 5.5 | 4.5 | 7 | 3 | 001 | f |
| M6X1 | P3 | 5 | 5.09 | PCNR6.0M | 5P | 62 | 19 | - | - | 6 | 4.5 | 7 | 3 | 004 | f |
| M8X1.25 | P3 | 6.8 | 6.85 | PCNR8.0N | 5P | 70 | 22 | - | - | 6.2 | 5 | 8 | 3 | 007 | f |
| M10X1.5 | P4 | 8.5 | 8.6 | PCNS010O | 5P | 75 | 24 | - | - | 7 | 5.5 | 8 | 3 | 007 | f |
| M12X1.75 | P4 | 10.3 | 10.36 | PCNS012P | 5P | 82 | 30 | - | - | 8.5 | 6.5 | 9 | 3 | 007 | f |
SL
PO
ST
ROLL
CARBIDE
JIS
LONG
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
