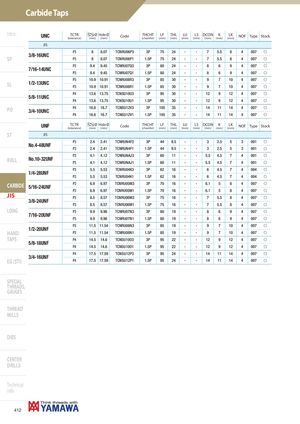

Каталоги Yamawa твердосплавные метчики для закаленной стали
| Intro | UNC | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock |
| JIS | ||||||||||||||||
| 3/8-16UNC | P3 | 8 | 8.07 | TCNRU06P3 | 3P | 75 | 24 | - | - | 7 | 5.5 | 8 | 4 | 007 | f | |
| SP | P3 | 8 | 8.07 | TCNRU06P1 | 1.5P | 75 | 24 | - | - | 7 | 5.5 | 8 | 4 | 007 | f | |
| 7/16-14UNC | P3 | 9.4 | 9.45 | TCNRU07Q3 | 3P | 80 | 24 | - | - | 8 | 6 | 9 | 4 | 007 | f | |
| P3 | 9.4 | 9.45 | TCNRU07Q1 | 1.5P | 80 | 24 | - | - | 8 | 6 | 9 | 4 | 007 | f | ||
| 1/213UNC | P3 | 10.9 | 10.91 | TCNRU08R3 | 3P | 85 | 30 | - | - | 9 | 7 | 10 | 4 | 007 | f | |
| SL | - | P3 | 10.9 | 10.91 | TCNRU08R1 | 1.5P | 85 | 30 | - | - | 9 | 7 | 10 | 4 | 007 | f |
| 5/811UNC | P4 | 13.6 | 13.75 | TCNSU10U3 | 3P | 95 | 30 | - | - | 12 | 9 | 12 | 4 | 007 | f | |
| - | P4 | 13.6 | 13.75 | TCNSU10U1 | 1.5P | 95 | 30 | - | - | 12 | 9 | 12 | 4 | 007 | f | |
| PO | 3/4-10UNC | P4 | 16.6 | 16.7 | TCNSU12V3 | 3P | 105 | 35 | - | - | 14 | 11 | 14 | 4 | 007 | f |
| P4 | 16.6 | 16.7 | TCNSU12V1 | 1.5P | 105 | 35 | - | - | 14 | 11 | 14 | 4 | 007 | f | ||
| UNF | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| ST | JIS | |||||||||||||||
| N4-48UNF | P3 | 2.4 | 2.41 | TCNRUN4F3 | 3P | 44 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | |
| o. | P3 | 2.4 | 2.41 | TCNRUN4F1 | 1.5P | 44 | 9.5 | - | - | 3 | 2.5 | 5 | 3 | 001 | f | |
| N10-32UNF | P3 | 4.1 | 4.12 | TCNRUNAJ3 | 3P | 60 | 11 | - | - | 5.5 | 4.5 | 7 | 4 | 001 | f | |
| ROLL | o. | P3 | 4.1 | 4.12 | TCNRUNAJ1 | 1.5P | 60 | 11 | - | - | 5.5 | 4.5 | 7 | 4 | 001 | f |
| 1/428UNF | P3 | 5.5 | 5.53 | TCNRU04K3 | 3P | 62 | 16 | - | - | 6 | 4.5 | 7 | 4 | 004 | f | |
| - | P3 | 5.5 | 5.53 | TCNRU04K1 | 1.5P | 62 | 16 | - | - | 6 | 4.5 | 7 | 4 | 004 | f | |
| CARBIDE | 5/1624UNF | P3 | 6.9 | 6.97 | TCNRU05M3 | 3P | 70 | 16 | - | - | 6.1 | 5 | 8 | 4 | 007 | f |
| - | P3 | 6.9 | 6.97 | TCNRU05M1 | 1.5P | 70 | 16 | - | - | 6.1 | 5 | 8 | 4 | 007 | f | |
| JIS | 3/824UNF | P3 | 8.5 | 8.57 | TCNRU06M3 | 3P | 75 | 16 | - | - | 7 | 5.5 | 8 | 4 | 007 | f |
| - | P3 | 8.5 | 8.57 | TCNRU06M1 | 1.5P | 75 | 16 | - | - | 7 | 5.5 | 8 | 4 | 007 | f | |
| LONG | 7/1620UNF | P3 | 9.9 | 9.96 | TCNRU07N3 | 3P | 80 | 19 | - | - | 8 | 6 | 9 | 4 | 007 | f |
| - | P3 | 9.9 | 9.96 | TCNRU07N1 | 1.5P | 80 | 19 | - | - | 8 | 6 | 9 | 4 | 007 | f | |
| 1/220UNF | P3 | 11.5 | 11.54 | TCNRU08N3 | 3P | 85 | 19 | - | - | 9 | 7 | 10 | 4 | 007 | f | |
| HAND | - | P3 | 11.5 | 11.54 | TCNRU08N1 | 1.5P | 85 | 19 | - | - | 9 | 7 | 10 | 4 | 007 | f |
| TAPS | P4 | 14.5 | 14.6 | TCNSU10O3 | 3P | 95 | 22 | - | - | 12 | 9 | 12 | 4 | 007 | f | |
| 5/8-18UNF | P4 | 14.5 | 14.6 | TCNSU10O1 | 1.5P | 95 | 22 | - | - | 12 | 9 | 12 | 4 | 007 | f | |
| 3/416UNF | P4 | 17.5 | 17.59 | TCNSU12P3 | 3P | 95 | 24 | - | - | 14 | 11 | 14 | 4 | 007 | f | |
| EG (STI) | - | P4 | 17.5 | 17.59 | TCNSU12P1 | 1.5P | 95 | 24 | - | - | 14 | 11 | 14 | 4 | 007 | f |
