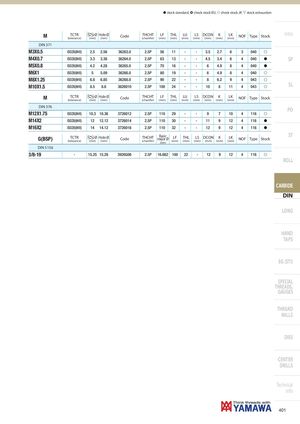

Общий каталог Yamawa 2021 - страница 400
Навигация
Обший каталог Yamawa 2016 - 2017
Краткое руководство Yamawa по каталогам
Общий каталог Yamawa 2022 - 2023
Каталоги Yamawa твердосплавные метчики для закаленной стали
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | Intro |
| DIN 371 | ||||||||||||||||
| M3X0.5 | ISO2X(6HX) | 2.5 | 2.56 | 36263.0 | 2.5P | 56 | 11 | - | - | 3.5 | 2.7 | 6 | 3 | 040 | f | |
| M4X0.7 | ISO2X(6HX) | 3.3 | 3.38 | 36264.0 | 2.5P | 63 | 13 | - | - | 4.5 | 3.4 | 6 | 4 | 040 | h | SP |
| M5X0.8 | ISO2X(6HX) | 4.2 | 4.28 | 36265.0 | 2.5P | 70 | 16 | - | - | 6 | 4.9 | 8 | 4 | 040 | h | |
| M6X1 | ISO2X(6HX) | 5 | 5.09 | 36266.0 | 2.5P | 80 | 19 | - | - | 6 | 4.9 | 8 | 4 | 040 | f | |
| M8X1.25 | ISO2X(6HX) | 6.8 | 6.85 | 36268.0 | 2.5P | 90 | 22 | - | - | 8 | 6.2 | 9 | 4 | 043 | f | |
| M10X1.5 | ISO2X(6HX) | 8.5 | 8.6 | 3626010 | 2.5P | 100 | 24 | - | - | 10 | 8 | 11 | 4 | 043 | f | SL |
| M | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | |
| DIN 376 | PO | |||||||||||||||
| M12X1.75 | ISO2X(6HX) | 10.3 | 10.36 | 3726012 | 2.5P | 110 | 29 | - | - | 9 | 7 | 10 | 4 | 116 | f | |
| M14X2 | ISO2X(6HX) | 12 | 12.12 | 3726014 | 2.5P | 110 | 30 | - | - | 11 | 9 | 12 | 4 | 116 | h | |
| M16X2 | ISO2X(6HX) | 14 | 14.12 | 3726016 | 2.5P | 110 | 32 | - | - | 12 | 9 | 12 | 4 | 116 | h | |
| G(BSP) | TCTR (tolerance) | Ø (mm) | Hole Ø (mm) | Code | THCHT (chamfer) | Basic major Ø (mm) | LF ( mm ) | THL ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF | Type | Stock | ST |
| DIN 5156 | ||||||||||||||||
| 3/8-19 | - | 15.25 | 15.28 | 3926G06 | 2.5P | 16.662 | 100 | 22 | - | 12 | 9 | 12 | 4 | 116 | f |
