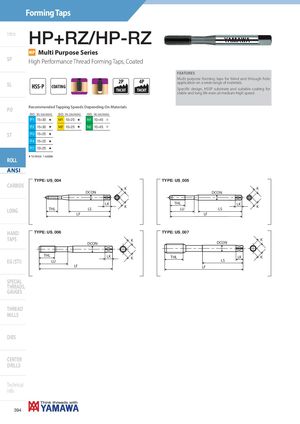

MP Multi Purpose Series
SP High Performance Thread Forming Taps, Coated
FEATURES Multi purpose forming taps for blind and through hole
| 2P | 4P | application on a wide range of materials. | ||
| SL | HSS-P | |||
| COATING | ||||
| THCHT | THCHT | Specific design, HSSP substrate and suitable coating for | ||
| stable and long life even at medium-high speed. | ||||
| PO | Recommended Tapping Speeds Depending On Materials |
ISO Vc (m/min) ISO Vc (m/min) ISO Vc (m/min)
| P1 | 15÷30 | H | M1 10÷25 | H | N1 | 10÷45 | I | |
| P2 | 15÷30 | H | M2 10÷25 | H | N2 | 10÷45 | I | |
| ST | P3 | 15÷25 | H | |||||
| P4 | 15÷25 | H | ||||||
| P7 | 10÷25 | H |
H 1st choice I suitable ROLL ANSI ANSI-HP+RZ/HP-RZ TYPE: US_004 TYPE: US_005
CARBIDE
K K DCON DCON
| LK | THL | LK | ||
| K | K |
LONG THL LS LU LS
LF LF
HAND
TAPS
EG (STI)
SPECIAL
THREADS,
GAUGES
THREAD
MILLS
TYPE: US_006 TYPE: US_007 K K DCON DCON
THL LK
K THL LK K
LU LS LF LF
