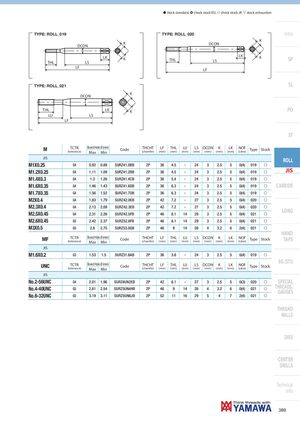

TYPE: ROLL_019
DCON
THL LS LF
TYPE: ROLL_021
DCON THL LU LS LF
LK
LK
K
K
K
K
TYPE: ROLL_020 DCON
THL LS LF
Intro
K
LK K SP
SL
PO
ST
| M | TCTR | Bored Hol | e Ø(mm) | Code | THCHT | LF | THL | LU | LS | DCON | K | LK | NOF | Type | Stock | |
| (tolerance) | Max | Min | (chamfer) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | ( mm ) | (Lobes) | |||||
| JIS | ROLL | |||||||||||||||
| M1X0.25 | G4 | 0.92 | 0.89 | SURZ41.0BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 019 | f | |
| M1.2X0.25 | G4 | 1.11 | 1.09 | SURZ41.2BB | 2P | 36 | 4.5 | - | 24 | 3 | 2.5 | 5 | 0(4) | 019 | f | JIS |
| M1.4X0.3 | G4 | 1.3 | 1.26 | SURZ41.4CB | 2P | 36 | 5.4 | - | 24 | 3 | 2.5 | 5 | 0(4) | 019 | f | |
| M1.6X0.35 | G4 | 1.46 | 1.43 | SURZ41.6DB | 2P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 019 | f | CARBIDE |
| M1.7X0.35 | G4 | 1.56 | 1.52 | SURZ41.7DB | 2P | 36 | 6.3 | - | 24 | 3 | 2.5 | 5 | 0(4) | 019 | f | |
| M2X0.4 | G4 | 1.83 | 1.79 | SURZ42.0EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 020 | f | |
| M2.3X0.4 | G4 | 2.13 | 2.09 | SURZ42.3EB | 2P | 42 | 7.2 | - | 27 | 3 | 2.5 | 5 | 0(4) | 020 | f | |
| M2.5X0.45 | G4 | 2.31 | 2.26 | SURZ42.5FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 021 | f | LONG |
| M2.6X0.45 | G5 | 2.42 | 2.37 | SURZ52.6FB | 2P | 46 | 8.1 | 14 | 29 | 3 | 2.5 | 5 | 0(4) | 021 | f | |
| M3X0.5 | G5 | 2.8 | 2.75 | SURZ53.0GB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 2(4) | 021 | f | |
| HAND | ||||||||||||||||
| MF | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | TAPS |
| JIS | ||||||||||||||||
| M1.6X0.2 | G3 | 1.53 | 1.5 | SURZ31.6AB | 2P | 36 | 3.6 | - | 24 | 3 | 2.5 | 5 | 0(4) | 019 | f | |
| UNC | TCTR (tolerance) | Bored Hol Max | e Ø(mm) Min | Code | THCHT (chamfer) | LF ( mm ) | THL ( mm ) | LU ( mm ) | LS ( mm ) | DCON ( mm ) | K ( mm ) | LK ( mm ) | NOF (Lobes) | Type | Stock | EG (STI) |
| JIS | ||||||||||||||||
| No.2-56UNC | G4 | 2.01 | 1.96 | SURZ4UN2EB | 2P | 42 | 8.1 | - | 27 | 3 | 2.5 | 5 | 0(3) | 020 | f | SPECIAL |
| No.4-40UNC | G5 | 2.61 | 2.54 | SURZ5UN4HB | 2P | 46 | 9 | 14 | 26 | 4 | 3.2 | 6 | 0(4) | 021 | f | THREADS, GAUGES |
| No.6-32UNC | G5 | 3.19 | 3.11 | SURZ5UN6JB | 2P | 52 | 11 | 16 | 29 | 5 | 4 | 7 | 2(4) | 021 | f | |
