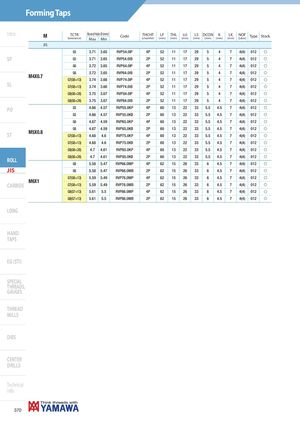

Forming Taps Intro M TCTR Bored Hole Ø (mm)(tolerance)MaxMinCodeTHCHT(chamfer)LF(mm)THL(mm) LU(mm) LS DCON K(mm)(mm)(mm)LK(mm)NOF(Lobes)TypeStock JIS G5 3.71 3.65 RVP54.0IP 4P 52 11 17 29 5 4 7 4(4) 012 f SP G5 3.71 3.65 RVP54.0IB 2P 52 11 17 29 5 4 7 4(4) 012 f G6 3.72 3.65 RVP64.0IP 4P 52 11 17 29 5 4 7 4(4) 012 f G6 3.72 3.65 RVP64.0IB 2P 52 11 17 29 5 4 7 4(4) 012 f M4X0.7 G7(G6+13) 3.74 3.66 RVP74.0IP 4P 52 11 17 29 5 4 7 4(4) 012 f SL G7(G6+13) 3.74 3.66 RVP74.0IB 2P 52 11 17 29 5 4 7 4(4) 012 f G8(G6+26) 3.75 3.67 RVP84.0IP 4P 52 11 17 29 5 4 7 4(4) 012 f G8(G6+26) 3.75 3.67 RVP84.0IB 2P 52 11 17 29 5 4 7 4(4) 012 f PO G5 4.66 4.57 RVP55.0KP 4P 60 13 22 33 5.5 4.5 7 4(4) 012 f G5 4.66 4.57 RVP55.0KB 2P 60 13 22 33 5.5 4.5 7 4(4) 012 f G6 4.67 4.59 RVP65.0KP 4P 60 13 22 33 5.5 4.5 7 4(4) 012 f G6 4.67 4.59 RVP65.0KB 2P 60 13 22 33 5.5 4.5 7 4(4) 012 f ST M5X0.8 G7(G6+13) 4.68 4.6 RVP75.0KP 4P 60 13 22 33 5.5 4.5 7 4(4) 012 f G7(G6+13) 4.68 4.6 RVP75.0KB 2P 60 13 22 33 5.5 4.5 7 4(4) 012 f G8(G6+26) 4.7 4.61 RVP85.0KP 4P 60 13 22 33 5.5 4.5 7 4(4) 012 f G8(G6+26) 4.7 4.61 RVP85.0KB 2P 60 13 22 33 5.5 4.5 7 4(4) 012 f ROLL G6 5.58 5.47 RVP66.0MP 4P 62 15 26 33 6 4.5 7 4(4) 012 f JIS G6 5.58 5.47 RVP66.0MB 2P 62 15 26 33 6 4.5 7 4(4) 012 f G7(G6+13) 5.59 5.49 RVP76.0MP 4P 62 15 26 33 6 4.5 7 4(4) 012 f M6X1 CARBIDE G7(G6+13) 5.59 5.49 RVP76.0MB 2P 62 15 26 33 6 4.5 7 4(4) 012 f G8(G7+13) 5.61 5.5 RVP86.0MP 4P 62 15 26 33 6 4.5 7 4(4) 012 f G8(G7+13) 5.61 5.5 RVP86.0MB 2P 62 15 26 33 6 4.5 7 4(4) 012 f LONG HAND TAPS EG (STI) SPECIAL THREADS, GAUGES THREAD MILLS DIES CENTER DRILLS Technical info 370
